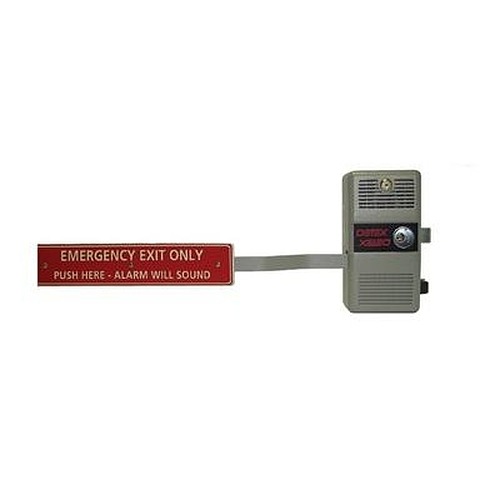

Detex ECL-600

Fire Rated Alarmed Exit Device

Quick Product Details

  • Alarmed Panic Exit Device
  • Fire Rated
  • For Hollow Metal, Wood or Aluminum Doors
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION
Price: $450.00 /each

SKU: ECL-600

Choose Options Below

This Detex ECL-600 is a fire rated alarmed panic exit device that is rated as a 3 hour device by Warnock Hersey, which indicates that this item complies to relevant building codes, product safety and performance standards.

  • Limited Stock!
  • Order in the next 7 hours 14 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $450.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $15.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$15.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality and Safety:
  • UL Listed Panic hardware 988N-Grade 3
  • Meets ADA requirements
  • Warnock Hersey 3 hour fire rated panic device - products bearing the Warnock Hersey (WH) Mark indicate compliance to relevant building codes, product safety and performance standards.

Available Options: Choose Options Above

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

  • 9V battery operated (included)
  • Supplied with: a cover lock with 2 keys and ECL-437 & ECL-439 Keepers
  • Accepts standard and interchangeable core rim cylinders.(Cylinder not included)
  • The deadbolt and deadlocking latchbolt retract simultaneously when the paddle bar is pushed
  • Use of control key permits unlocking the door without sounding the alarm
  • Locking the deadbolt mechanism always arms the alarm system
  • Deadbolt and latchbolt deter unauthorized access from the outside while allowing emergency egress from the inside.
  • Rugged housing with the key lock, saw-resistant bolt, and corrosion-resistant alloy lock body resist defeat from the inside.
  • When armed, pressing the exit bar sounds an alarm of approximately 100 decibels
  • Features a non-handed lock and bar which requires no cutting
  • Inside and outside key control capabilities allow authorized alarm bypass. The ECL-620 outside lever required for exterior entry.
  • Relatching for additional security
  • Resetting the alarm can only be done with a control key that also throws the deadbolt
  • Remote Signal - Dry Contact
  • Cylinder Spacer is required for 6 or 7-pin cylinder on inside key control (ECL-1595)
Style Fire Rated Alarmed Panic Exit Device
Application Wood, hollow metal, and aluminum doors
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door width Minimum 32", maximum 48"
Latchbolt 1" throw bolt and 3/4" deadlocking latchbolt
Push Plate and Bar Dimensions 2-1/2" high x 24-1/8" wide
Lock Case Dimensions 10-3/8" high x 5-3/4" wide x 3-3/4" deep
Housing Die-cast aluminum alloy
Finish Grey

More Info


The Detex ECL600 is an exit device in which multiple features and security benefits are combined with quality and reliability to serve you with the best. The Warnock Hersey mark on this device, indicates its compliance to relevant building codes, product safety requirements and operation standards. It has also been proven to withstand up to 2200 pounds of outside pull force which ensures its terrific attack resistance.
