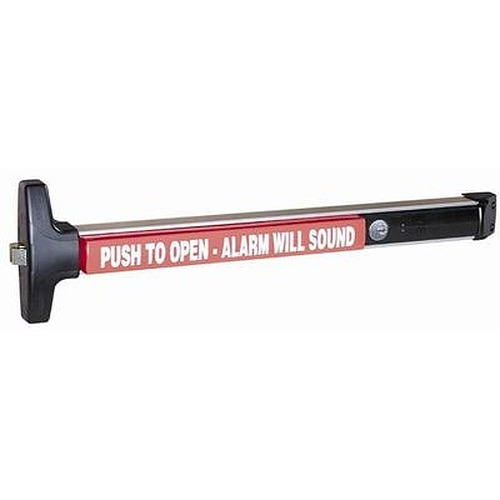

Detex FV40-EB-48-628

Special Order Fire Rated Alarmed Rim Exit Device

Quick Product Details

  • Alarmed Rim Exit Device
  • Fire Rated
  • For 48" Wood, Hollow Metal, Fiberglass or Aluminum Doors
Price: $454.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: FV40-EB-48-628

Choose Options Below

This Detex FV40-EB-48-628 is a fire rated, alarmed, rim exit device ideal for use in fire rated applications. This device is designed for primary and secondary exits where an alarm is necessary.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $454.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

1-1/8 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway +$14.00
No Mortise Cylinder needed

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




Special order non stock item with 8 week lead time

Suited For:
Wood, hollow metal, fiberglass or aluminum doors in primary and secondary exits where an alarm is required.

Quality and Safety:
  • UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors.
  • UL Listed Panic Hardware
  • Meets ADA requirements
  • ANSI/BHMA certified A156.3 Grade 1
  • UL10C for positive pressure
  • Meets NFPA 80 & 101 for Life Safety.

Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Product at A Glance

  • Powered by standard 9-volt battery
  • Requires 1-1/8” Mortise Cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog
  • Tamper-resistant housing protects electronics, battery and internal hardware
  • Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale Cam.
  • Covers a 161 door prep
  • Field sizeable
  • Visual and audible low-battery alert
  • Visual and audible arming indicators
  • NS Narrow stile door option - Fits 2" narrow stile doors with narrow Stile Door Kit (#NSK sold separately)
  • Angled end cap to deflect damage
  • Tamper-resistant security switching electronically monitors latch bolt
  • Adjustable 2 min. re-arming feature for auto re-arm
  • Armed/Disarmed status indicator is field selectable
  • Delayed arming feature for arming after door closed
  • Exterior made  of anodized aluminum and damage and corrosion resistant ABS
Style Fire Rated Alarmed Panic Exit Device
Application Wood, hollow metal, fiberglass and aluminum doors
Door Thickness 1-3/4" to 2-1/4"
Handing Non-handed
Deadlatch Stainless steel dead-latching bolt with 3/4" throw
Finish Aluminum - 628

More Info

This FV40-EB-36-628 alarmed panic exit device is specially designed to serve on doorway applications that are fire rated. It is a reliable and durable device that will provide necessary protection 24 hours a day as well as controlling traffic and discouraging theft attempts in primary and secondary exits. The device is powered by a 9-volt battery.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Detex V40EB Installation thumbnail

Detex V40EB Installation

Detex V40EB Battery Change thumbnail

Detex V40EB Battery Change
