Detex FV50-EB-628

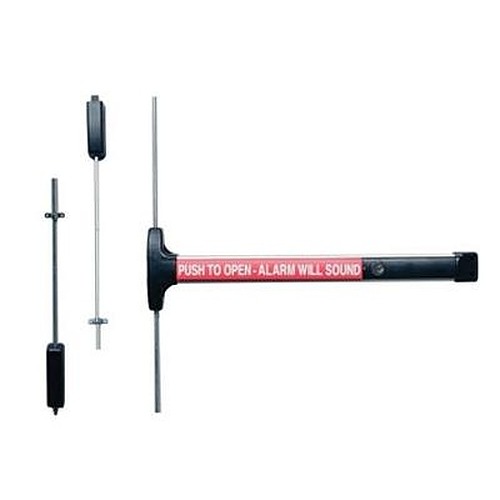

Special Order Alarmed Fire Rated Surface Vertical Rod Exit Device

Quick Product Details

  • Fire Rated Alarmed Surface Vertical Rod Exit Device
  • For wood, hollow metal or aluminum doors
  • 3 Hour UL Fire Rated
Price: $647.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: FV50-EB-628

Choose Options Below

This Detex FV50-EB is a Fire rated alarmed surface vertical rod exit device for all types of wood, hollow metal, fiberglass and aluminum doors. This device features a 100 decibel alarm that will sound in the case of an unwarranted exit.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $647.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

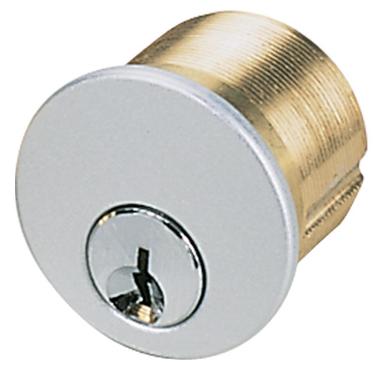

1-1/8 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway +$12.00
No Mortise Cylinder needed

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




Special order non stock item with 5 week lead time
Quality and Safety:
  • ANSI 156.3 - 2001 Grade 1
  • UL Listed Panic Hardware
  • UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and 8’x10’ pairs of doors

Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Product at A Glance

  • Alarmed 2 point surface vertical rod exit device powered by standard 9-volt battery
  • This device locks at the top and bottom
  • Features a 100 decibel alarm
  • 1-1/8” Mortise Cylinder with a standard Yale Cam is required to Arm / Disarm
  • Single mortise cylinder (sold separately) provides arming
  • Field selectable key rearm or 2 minute auto rearm
  • Visual and audible arming indicators
  • Armed and disarmed field selectable status indicator
  • Delayed arming allows arming after door closes
Style Fire Rated Alarmed Surface Vertical Rod Exit Device
Application Wood, hollow metal and aluminum doors
Door Thickness 1-3/4" to 2-1/4"
Door Size 3' x 7' single door
Handing Shipped Right hand reverse - field reversible
Deadlatch Stainless steel deadlocking pullman type latch bolt with 3/4" throw
Bottom Drop Bolt 5/8" diameter x 5-5/8" length - secures into strike plate
Stile Fits 3-1/2" stile doors
Finish Aluminum (689)

More Info

The Detex FV50-EB is a Fire rated vertical rod exit device with an alarm system for use on any door in nearly any application. It conveniently installs quickly and precisely without complication and does not necessitate complicated door preparations which saves your time and money. It is a device designed with very high durability standards which will save you on maintenance and replacement.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



Detex Install V50 thumbnail

Detex Install V50
