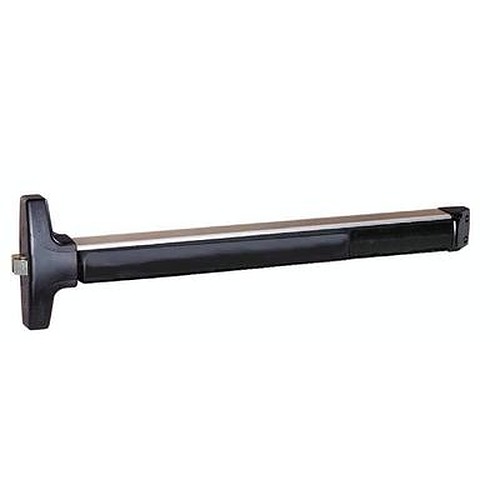

Detex V40-36-628-W

Special Order UL Weatherized Rim Exit Device With Exit Only Function

Quick Product Details

  • UL Weatherized Rim Exit Device
  • Designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: V40-36-628-W

This Detex UL Weatherized rim exit device, standard duty rim exit device. Its exterior is made of anodized aluminum and damage and corrosion resistant ABS.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 8 week lead time
  • UL Weatherized Rim Exit Device.
  • Exit only function, no entry from outside.
  • Device conforms to UL1034-34 Temperature Section 34 , UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive  pressure).
  • It is designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather.
  • Exterior made of anodized aluminum and damage and corrosion resistant ABS.
  • 36 - Fits 36" door width.
  • Fits 3"stile doors.
  • Includes an angled end cap to deflect damage.



Product at A Glance

  • UL Listed Panic Hardware.
  • UL1034-34 Temperature Section 34 [Temperature Range -31°F (-35° C) to 150° F (+66° C)].
  • UL1034-54 Dust Section 54.
  • MIL-STD 810F (G), Method 509.4 (Salt Fog Test).
  • MIL-STD 810F (G), Method 506.4 (Driving Rain), Procedure 1.
  • UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure.
  • ANSI/BHMA certified A156.3
Style Weather Resistant Rim Exit Device
Application Wood, hollow metal, fiberglass and aluminum doors
Door Thickness 1-3/4" to 2-1/4"
Handing Non-handed
Deadlatch Stainless steel dead-latching bolt with 3/4" throw
Stile 3" minimum
Finish Aluminum (628)

More Info


This standard duty rim exit device is a Detex Value series panic bar with the additional benefit of weather resistance. It can be used in areas that are exposed to all kinds of weather or in applications that are prone to get wet, and still provide you with the terrific performance and durability as in any other installation.
