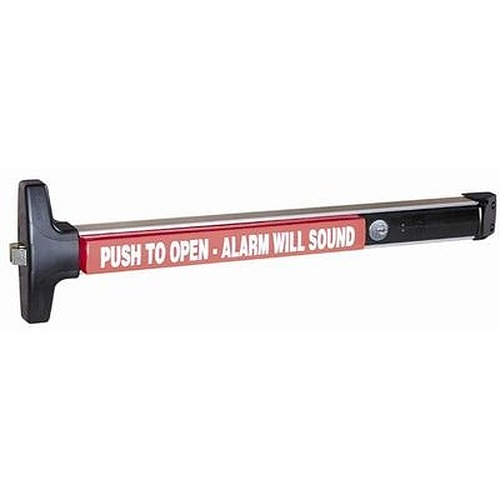

Detex V40-EB-W

Weatherized Alarmed Rim Exit Device

Quick Product Details

  • Alarmed Rim Exit Device
  • Weatherized Alarm
  • For wood, hollow metal, fiberglass or aluminum doors
Price: $554.00 /each


Choose Options Below

This Detex V40-EB-W is a weatherized alarmed rim exit device ideal for use in outdoor or wet environments. This device is powered by a standard 9 volt battery which is included in the package.

  • Limited Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $554.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628 Clear Anodized Aluminum 628 Clear Anodized Aluminum

Choose Cylinder 1-1/8:

1-1/8 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway +$15.00
No Mortise Cylinder needed

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.



Choose Select Rail Size:

48" +$26.00


Available Options: Choose Options Above

  • Finish:

  • Cylinder 1-1/8: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed
  • Select Rail Size:

    • 36"
    • 48"

Product at A Glance

  • Weatherized alarm for use in outdoor or wet environments.
  • Designed for primary and secondary exits that require an alarmed panic device
  • Powered by a standard 9-volt battery
  • Features cylinder dogging
  • Requires 1-1/8” Mortise Cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog
  • Standard rim cylinder required for exterior access (Not included)
  • Tamper-resistant housing protects electronics, battery and internal hardware
  • Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale Cam.
  • Covers a 161 door prep
  • Size is field adjustable
  • Visual and audible low-battery alert
  • Visual and audible arming indicators
  • NS Narrow stile door option - Fits 2" narrow stile doors with Narrow Stile Door Kit (#NSK sold separately)
  • Includes an angled end cap to deflect damage
  • Tamper-resistant security switching electronically monitors latch bolt
  • Adjustable 2 minute re-arming feature for auto re-arm
  • Armed/Disarmed status indicator is field selectable
  • Features delayed arming feature for arming after door closed
  • Exterior of anodized aluminum and damage and corrosion resistant ABS
Style Alarmed Panic Exit Device
Application Wood, hollow metal, fiberglass and aluminum doors
Door Thickness 1-3/4" to 2-1/4"
Handing Non-handed
Deadlatch Stainless steel dead-latching bolt with 3/4" throw

More Info

This V40-EB-W alarmed panic exit device is specially designed to serve on doorway applications that are outdoor or in wet environments. It is a reliable and durable device that will provide necessary protection 24 hours a day as well as controlling traffic and discouraging theft attempts in primary and secondary exits. The device is powered by a 9-volt battery.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



Detex V40EB Installation thumbnail

Detex V40EB Installation

Detex V40EB Battery Change thumbnail

Detex V40EB Battery Change
