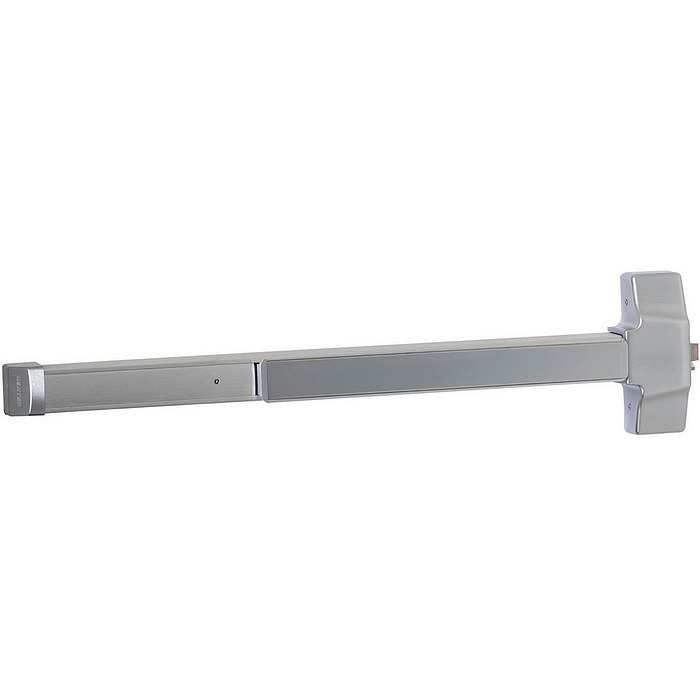

Dexter ED1500-V-EO-3FT-7FT-DH

Surface Vertical Rod Exit Device

Quick Product Details

  • Surface Vertical Rod Exit Device
  • Exit-Only Function
  • Standard Duty
Price: $254.00 /each

SKU: ED1500-V-EO-3FT-7FT-DH

Choose Options Below

This Dexter rim exit Surface Vertical Rod Exit Device is an exit only function device which does not include a trim. This function is excellent for use on egress only doors where re-entry is not desired.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $254.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Finish:

SP28 Painted Aluminum Finish SP28 Painted Aluminum Finish

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 5 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors without mullion
  • Quiet operation
  • Device ships Exit Only, without any outside trim
  • Grade 1, UL listed panic device, UL listed 3-hour fire rim device
  • Durable, steel mechanism case construction
  • Deadlatching standard
  • Devices fit standard 1 3/4" thick door
  • 3 1/2" minimum stile width
  • Hex key dogging standard on all panic devices
  • Surface vertical devices are easily field reversible
  • Universal hardware pack for wood and hollow metal
  • Door widths: 36" device fits 29" to 36"door size; 48" device fits
  • 33" to 48" door siz
  • Made for doors up to 7ft in height
Style Surface Vertical Rod Exit Device
Function Exit only - trim not included
Handing Non-handed
Door Thickness 1-3/4" only
Dogging Feature Hex key dogging standard
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Latch Bolt,Minimum Stile Width Deadlocking - 3/4" throw,3-1/2" minimum
Projection,Door Width - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16",Fits doors 29-36" in width
