dormakaba 5021BWL-26D

Simplex Extra Heavy Duty Mechanical Pushbutton Lever Lock with IC Core Key Override

Quick Product Details

  • Mechanical Pushbutton Lock
  • Heavy Duty
Price: $498.00 /each

SKU: 5021BWL-26D

Choose Options Below

This Kaba Access Control Simplex 5021BWL is a mechanical pushbutton lock with IC core key override prep. It is a highly weather resistant lock that provides exterior access by combination, while allowing free egress. For high-traffic commercial, institutional, and government buildings.

  • Stock Item
  • Order in the next 6 hours 59 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $498.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

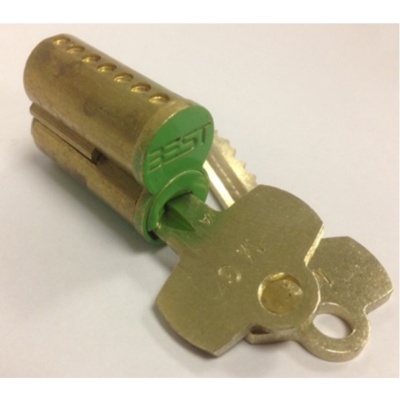

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$40.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $48.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$48.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview


Quality and Safety:
  • ANSI/BHMA A156.2, Grade 1 Certified.
  • Three-hour UL/ ULC Fire rating for "A" label doors.
  • ADA compliant levers
  • 3 year limited warranty

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Finish:

Product at A Glance

  • Retrofits cylindrical & tubular locksets with a 2-3/4” backset
  • The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
  • Lock is programmed via keypad without removing the lock from the door
  • Combination code - one code per lock: one to five numbers pressed individually or simultaneously
  • This lock is weather resistant
  • Accepts Best compatible 6 or 7 pin length interchangeable cores (Core not included)
Style Mechanical Pushbutton lock
Grade Heavy duty
Handing Pre-assembled for left-handed doors - easily field changeable
Door Thickness 1-5/8" to 2"
Backset 2-3/4" (standard)
Stile Minimum 5" required
Latch 1/2" throw latch with floating faceplate
Dimensions 8-7/8H x 3-3/8" W x 3-3/8" D

More Info


This combination lock will eliminate the use of keys while providing you with top quality and uncompromised performance for a safe a secure opening. This lock can be programmed with one combination from one to five digits using each button individually or simultaneously. It is highly weather resistant for use in the outdoors.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

Simplex 5000 - How to Change the Combination (Exterior Combination Change) thumbnail

Simplex 5000 - How to Change the Combination (Exterior Combination Change)

Simplex 5000 - How to Reset an Unknown Combination thumbnail

Simplex 5000 - How to Reset an Unknown Combination
