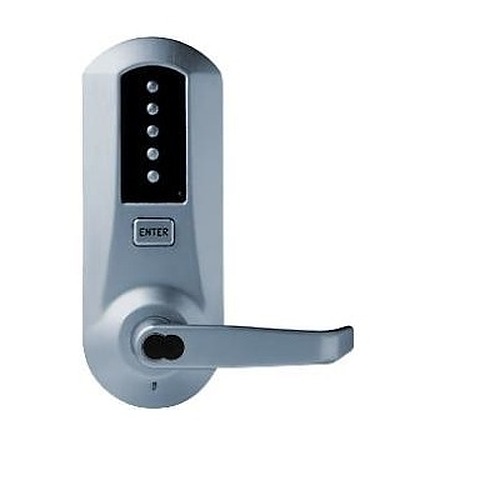

dormakaba 5021BWL-744

Special Order Simplex Extra Heavy Duty Mechanical Pushbutton Lever Lock with IC Core Key Override

Quick Product Details

  • Mechanical Pushbutton Lock
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 5021BWL-744

Choose Options Below

This Kaba Access Control Simplex 5021BWL is a mechanical pushbutton lock with IC core key override prep. It is a weather resistant lock that provides exterior access by combination, while allowing free egress. For high-traffic commercial, institutional, and government buildings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

613 - US10B 613 - US10B

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$29.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $34.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

Special order non stock item with 4 week lead time

Quality and Safety:
  • Dark Bronze with Brass Accents (simulated 10B/613)-744
  • Requires a Best compatible small format IC core for key override, not included.
  • ANSI/BHMA A156.2, Grade 1 Certified.
  • Three-hour UL/ ULC Fire rating for "A" label doors.
  • ADA compliant levers
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed

Product at A Glance

  • Retrofits cylindrical & tubular locksets with a 2-3/4” backset
  • The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
  • Lock is programmed via keypad without removing the lock from the door
  • Combination code - one code per lock: one to five numbers pressed individually or simultaneously
  • This lock is weather resistant
  • Accepts Best compatible 6 or 7 pin length interchangeable cores (Core not included)
Style Mechanical Pushbutton lock
Grade Heavy duty
Handing Pre-assembled for left-handed doors - easily field changeable
Door Thickness 1-5/8" to 2"
Backset 2-3/4" (standard)
Stile Minimum 5" required
Latch 1/2" throw latch with floating faceplate
Dimensions 8-7/8H x 3-3/8" W x 3-3/8" D

More Info


This combination lock will eliminate the use of keys while providing you with top quality and uncompromised performance for a safe a secure opening. This lock can be programmed with one combination from one to five digits using each button individually or simultaneously. It is weather resistant for use in outdoors.
