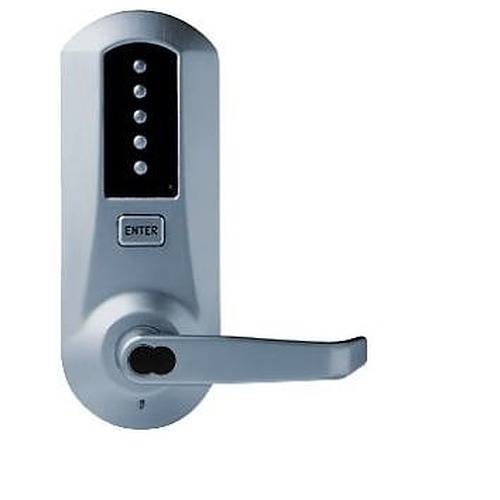

dormakaba 5021RWL-26D

Special Order Simplex Heavy Duty Mechanical Pushbutton Lever Lock with Sargent IC Core Prep Key Override

Quick Product Details

  • Mechanical Pushbutton Lock
  • Heavy Duty
  • Sargent IC Core Prep Key Override,Core Not Included
Price: $360.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 5021RWL-26D

Choose Options Below

This Kaba Access Control Simplex 5021R-WL is a mechanical pushbutton lock that retrofits cylindrical and tubular locksets with a 2-3/4" backset. It operates with a vandal resistant keypad with solid metal pushbuttons.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $360.00

Choose Finish:

US26D Satin Chrome US26D Satin Chrome


Special order non stock item with 4 week lead time
Quality and Safety:
  • ANSI/BHMA A156.2, Grade 1 Certified.
  • Keyover ride, prepped for Sargent LFIC IC core. Core not included.
  • Three-hour UL/ ULC Fire rating for "A" label doors.
  • ADA compliant levers
  • 3 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Retrofits cylindrical & tubular locksets with a 2-3/4” backset
  • The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
  • The lock is programed via keypad without removing the lock from the door
  • Combination code - one code per lock: one to five numbers pressed individually or simultaneously
  • The lock is weather resistant
Style Mechanical Pushbutton lock
Grade Heavy duty
Handing Pre-assembled for left-handed doors - easily field changeable
Door Thickness 1-5/8" to 2"
Backset 2-3/4" (standard)
Stile Minimum 5" required
Latch 1/2" throw latch with floating faceplate
Dimensions 8-7/8" H x 3-3/8" W x 3-3/8" D

More Info

This Kaba Access Control Simplex 5021R-WL lock is a mechanical five digit combination lock which is programed using the keypad without having to remove the lock from the door. This lock includes the option of overriding the lock with the use of a Sargent in LFIC IC coreIC core not included.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Simplex 5000 - How to Change the Combination (Exterior Combination Change) thumbnail

Simplex 5000 - How to Change the Combination (Exterior Combination Change)

Simplex 5000 - How to Reset an Unknown Combination thumbnail

Simplex 5000 - How to Reset an Unknown Combination
