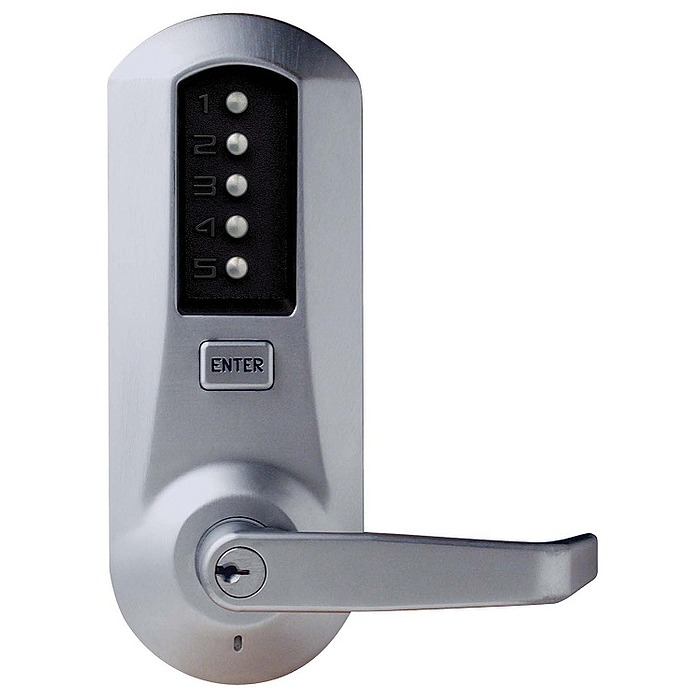

dormakaba 5041XSWL-26D-41

Special Order Mechanical Pushbutton Lever Lock with Key Override and Passage Mode

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 5041XSWL-26D-41

Choose Options Below

Kaba Simplex 5041 mechanical pushbutton lock with key override and passage mode.The Simplex(R) 5000 Series is an ANSI rated Grade 1 security lock that is highly weather resistant. Provides exterior access by combination, while allowing free egress. For high-traffic commercial, institutional, and government buildings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Choose Finish:

US26D Satin Chrome US26D Satin Chrome


Special order item with 4 week lead time.

  • Passage mode-Allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key.
  • Retrofits cylindrical & tubular locksets with a 2-3⁄4" backset.
  • Numeric Keypad:Vandal resistant, solid metal pushbuttons.
  • Programming - Lock is programmed via keypad without removing lock from the door.
  • Combination code - One code per lock.
  • Door handing - field reversible pre-assembled for left-hand door installations.
  • Backset - 2-3⁄4".
  • Minimum stile requirement - 5".
  • Door thickness - Pre-assembled to accommodate doors 1-5⁄8" to 2" thick.
  • Mechanical key override - Schlage C keyway
  • Weather resistant.

Available Options: Choose Options Above

More Info

  • Latch - 1⁄2" throw latch, floating face plate.
  • ADA compliant levers
  • Fire rating -Three-hour UL/ ULC Fire rating for "A" label doors.
  • Durability - ANSI/BHMA A156.2, Grade 1 Certified.
  • Dimensions: 8 7/8" H x 3 3/8" W x 3 3/8" D.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
