dormakaba 8616-AF86P-FC-SNB1-691

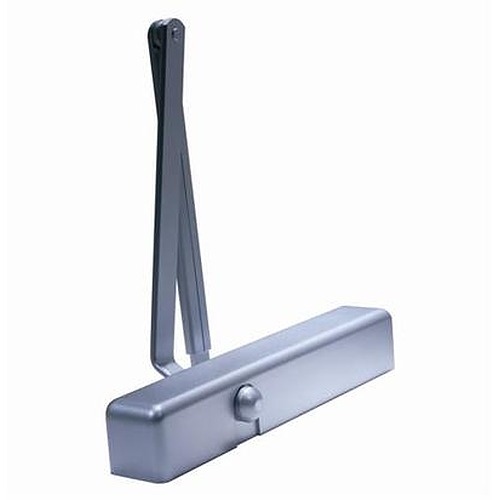

Special Order Architectural Grade Door Closer with Satin Bronze Painted Finish

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8616-AF86P-FC-SNB1-691

Choose Options Below

Dorma 8616 architectural grade door closer is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors. It is available in adjustable spring size 1-6. With satin bronze painted finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

691-Satin Bronze Finish 691-Satin Bronze Finish

Overview

Special order item with 6 week lead time.
  • Body, full cover and mounting hardware with AF86P standard arm for regular, top jam or parallel mounting.
  • Satin bronze finish.
  • Adjustable spring size 1-6 shipped as size 4
  • Non-handed for regular, top jamb and parallel arm applications.
  • Mounting holes spaced 12" horizontally and 3/4" vertically center to center
  • Barrier Free, meets ADA requirements (Opening force 5 lb or less on interior doors, 8.5 lb or less on exterior doors )

Available Options: Choose Options Above

More Info

  • Adjustable Backcheck with positioning adjustment
  • Two adjustment valves to control sweep and latch closing speeds
  • Sex nuts and machine/wood combo screws for 1-3/4" thick doors
  • ANSI A156.4 Grade 1 certified.
  • U.L. & C.U.L. listed.
  • CSFM approved
  • Meets UL10C and UBC 7.2 (1997).
  • Non-handed
  • Range of Door Sizes:
    - Exterior door widths to 42".
    - Interior door widths to 48".
    -25 year Warranty
