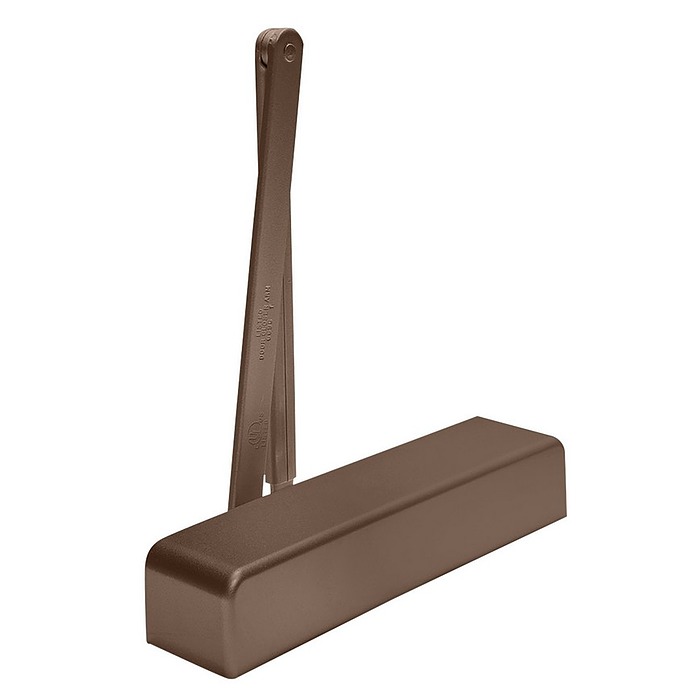

dormakaba 8916-ARP-COV-DPK86

Special Order Heavy-Duty Door Closer for Institutional or High-Traffic Applications

Quick Product Details

Door closer
For Institutional /High traffic applications
Heavy Duty/Architectural Grade

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 8916-ARP-COV-DPK86

Choose Options Below

This Dorma 8916 is designed to meet the demanding requirements in institutional or high traffic applications. Can be used on doors that weigh up to 180 pounds, measure up to 96" in height and up to 48" in width on interior doors and 42" in width on exterior doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

DKBRZ-695 Dark Bronze Painted

Choose Select Arm:

AF89P-standard arm Tri-Packed with PA bracket

ARP - Round Arm Tri-Pak

Help Me Decide

Hold Open - a mechanism within a closer which allows a door to remain in an open position

Parallel Arm - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face (in most situations). This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

AF86P - Tri-packed standard arm for regular, top jamb and parallel arm mount.
DS - Heavy-duty parallel Door Saver Arm with integral cushioned opening function. Non-hold open arm. Arm is non handed.
DST - Hold Open Heavy-duty Door Saver parallel arm with thumb turn hold open. Arm is non handed
FHP - Friction Hold Open Arm. Provides a hold open function between approximately 90 degrees and 180 degrees of door opening (conditions permitting). With PA hold open bracket.
S-DS - Spring Stop Door Saver Parallel Arm. Heavy-duty parallel arm with spring assisted dead stop function.
S-DST - Hold Open Spring Stop Door Saver Parallel Arm. Heavy-duty Hold Open parallel arm with spring assisted dead stop function.
SPA - Super Parallel Arm. Heavy-duty parallel arm

1 Choose Finish:
2 Choose Select Arm:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Non-Stock Special-Order with 7-9 week lead time

Suited for:

Institutional or high traffic applications

Quality and Safety:

Meets ANSI A156.4 Grade 1 requirements
Meets ANSI A117.1 and ADA requirements for Barrier Free accessibility, (Opening force on interior doors: 5 lbs or less, on exterior doors: 8.5 lb or less )
10 million cycles independently certified
U.L. & C.U.L. listed.
CSFM approved
Meets UL10C and UBC 7.2 (1997).
25 year limited warranty

Available Options: Choose Options Above

Finish:
- DKBRZ-695 Dark Bronze Painted
Select Arm:
Select Arm
Hold Open - a mechanism within a closer which allows a door to remain in an open position

Parallel Arm - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face (in most situations). This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

AF86P - Tri-packed standard arm for regular, top jamb and parallel arm mount.

DS - Heavy-duty parallel Door Saver Arm with integral cushioned opening function. Non-hold open arm. Arm is non handed.

DST - Hold Open Heavy-duty Door Saver parallel arm with thumb turn hold open. Arm is non handed

FHP - Friction Hold Open Arm. Provides a hold open function between approximately 90 degrees and 180 degrees of door opening (conditions permitting). With PA hold open bracket.

S-DS - Spring Stop Door Saver Parallel Arm. Heavy-duty parallel arm with spring assisted dead stop function.

S-DST - Hold Open Spring Stop Door Saver Parallel Arm. Heavy-duty Hold Open parallel arm with spring assisted dead stop function.

SPA - Super Parallel Arm. Heavy-duty parallel arm
- AF89P-standard arm Tri-Packed with PA bracket
- ARP - Round Arm Tri-Pak

Product at A Glance

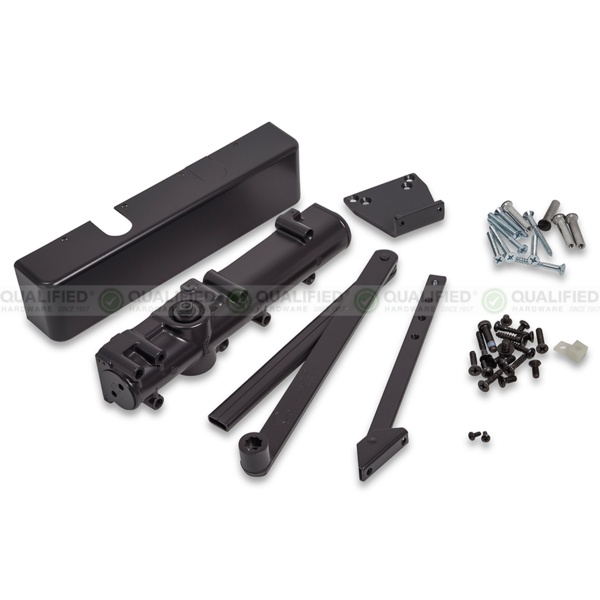

Package includes: body, slim cover, mounting hardware and the round arm tri-pak
Adjustable backcheck with positioning adjustment
Two adjustment valves to control sweep-speed and latch-speed
Adjustable spring size 1-6, shipped as size 4
Mounting holes are spaced 5" horizontally and 2-1/8” vertically (center to center)
Furnished with self drilling fasteners for the arm and thru-bolts for the body
Forged steel main arm hub
Corrosion-resistant, high-strength aluminum housing.
Hardened pinion/piston
All valves are accessible when the closer is installed

Style	Door closer
Grade	Heavy Duty/Architectural grade
Application	For Institutional /High traffic applications
Door Handing	Non-handed (regular,top jamb and parallel arm applications)
Door Weight	Maximum 180 lbs
Door Height	Maximum 96"
Door Width	- Interior: maximum 48" - Exterior: maximum 42"

More Info

To conform to the aesthetic qualities required in certain applications, we offer this 8916 architectural grade closer. It features a modern style, slim cover a round arm and a choice of pleasing architectural finishes without compromising on superior quality. It is also backed by a twenty five year limited warranty that should leave you worry-free.
