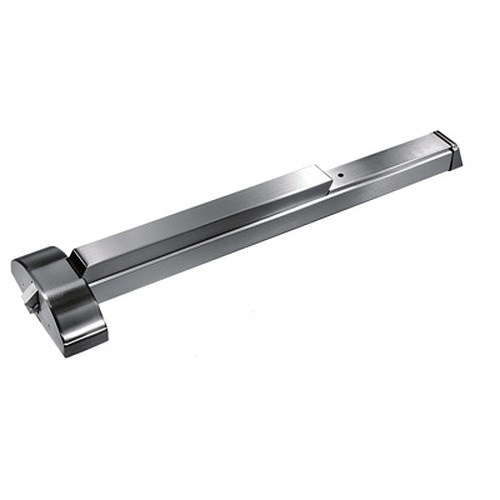

dormakaba 9300B-630-MLR

Special Order Heavy Duty Rim Exit Device with Motorized Latch Retraction

Quick Product Details

  • Rim Exit Device with MLR
  • Exit Only
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9300B-630-MLR

This Dorma 9300B-630 is a rim exit device that is heavy duty to provide superior durability for high use applications. It is an exit only device that allows for no outside operation. Rail size is 36" for doors measuring between 28" and 36" wide.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time
Quality and Safety:
  • Meets ANSI/BHMA 156.3, Grade 1 requirements for exit devices.
  • 5 year limited warranty

Product at A Glance

  • MLR,Motorized Latch Retraction.
  • MLR requires the use of the DKPS-2A power supply, not included.
  •  MLR-A motor concealed in the touchbar assembly provides retraction of the latch bolt by drawing in the touch bar to allow access from the secure side of the door.

Style Rim exit device
MLR Motorized Latch Retraction. Requires the DKPS-2A power supply
Grade Heavy duty
Function Exit only:
- No outside operation
- Trim not included
Door Handing Non-handed
Door Thickness 1-3/4" - 2-1/4"
Rail Size 36" - for doors 28" - 36" wide
Latch Deadlocking
Throw 3/4"
Finish Satin stainless steel (630)

More Info


This rim exit device features a unique smooth push bar that projects less than usual, to help prevent the danger of clothes or other items getting caught in the bar. This device has a rail that measures 36” which will fit any door opening measuring between 28” and 36” wide. The exit only function, on this device, does not allow for outside operation.
