dormakaba BTS80-Kit B Complete-SZ3-W2-619

Sprecial Order Center Hung, Double Acting, Wood or Steel Door and Frame Floor Closer

Quick Product Details

  • Complete Floor Closer
  • For Wood or Steel Doors and Frames
  • Center-Hung
  • Double Acting
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: BTS80-Kit B Complete-SZ3-W2-619

This Dorma BTS80-Kit B is the ideal double-acting floor closer for wood or steel doors and frames. It is a center-hung, non-handed closer that is available with many different options to suit the needs of your application. A pressure relief valve will protect the closer from damage caused by force closing.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview


Special order non stock item with 4 week lead time
  • Wood or steel door and frame.
  • Satin nickel finish-619

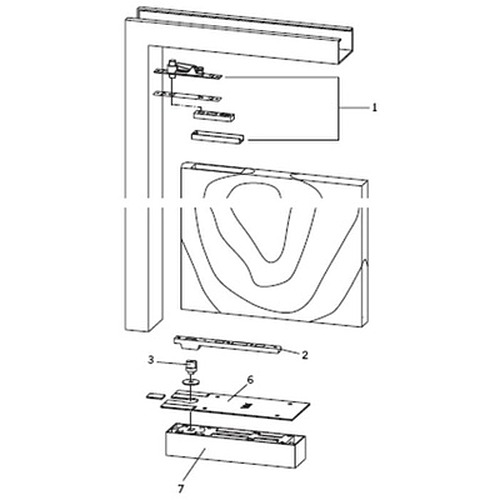

  • kit includes -closer  BTS80-3, ANSI size 6 for  Exterior Doors 3'6"- 4'0" Interior Doors 4'0" - 4'6
  • 74010 3/4" clearance standard spindle.
  • 7410 floor plate.
  • 7421 center hung bottom arm.
  • 8062 center hung top pivot.

Product at A Glance

  • Dual valves allow for adjustment of the closing-speed and latch-speed
  • Pressure relief valve protects the closer from damage caused by forced closing
  • The closers will have mechanical backcheck at approximately 70º.
  • Closer adjustment in the cement case provides lateral and longitudinal adjustment of 1/4”, and height adjustment of 5/32".
  • Selectable delayed action between 75º and 175º.
  • Selectable multi-point hold-open between (approximately) 75º and 175º.
  • Delayed action is functional when hold-open is not engaged.
  • Suitable for thin slab construction
Style Complete Floor Closer
Application Center-hung
Door Handing Non-handed
Function Double Acting
Door Weight Up to 660 lb
Depth 2-3/8" - for thin slab construction

More Info


The BTS80 series closers are designed and constructed with different features to ensure their durability and efficiency. The pressure relief valve will serve to protect the closer from any damage that can be caused by force closing the door. Its dual valves will permit the adjustment of the closing and latch speed according to the needs of the application.
