dormakaba BTS80F-5

Special Order Fire Rated Floor Closer Body and Cement Case

Quick Product Details

Floor Closer Body and Cement Case
For interior and exterior doors
Offset/Center-hung
Heavy Duty
Single/Double-acting

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: BTS80F-5

Choose Options Below

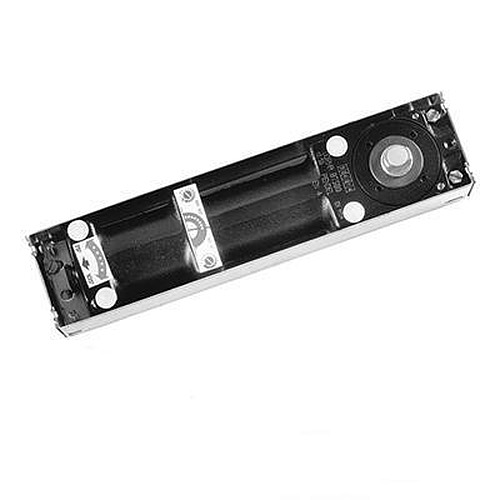

This Dorma BTS80F-5 is a handed, compact Fire rated floor closer body and cement case suitable for thin slab concrete construction in interior or exterior applications. This floor closer body can be used with offset or center-hung, heavy, single acting doors weighing up to 660 pounds. The wide selection of spindles available makes this closer body adaptable for use on almost all floor covering and threshold applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)

Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Choose Spindle:

Need Help Deciding?

No Spindle

Spindle Insert- 5/16"clearance (74003) +$39.00

1/2"Clearance (74005) +$39.00

5/8"clearance (74007) +$39.00

Standard 3/4"clearance (74010) +$39.00

13/16"clearance (74012) +$51.00

7/8"clearance (74015) +$51.00

1-1/8"clearance (74020) +$51.00

1-5/16"clearance (74025) +$51.00

1-1/2"clearance (74030) +$51.00

1-11/16"clearance (74035) +$51.00

1-7/8"clearance (74040) +$51.00

2-1/16"clearance (74045) +$51.00

2-5/16"clearance (74050) +$51.00

Pre Load Spindle 5/16"clearance LH (80003) +$51.00

Pre Load Spindle 5/16"clearance RH (80003) +$39.00

Pre Load Spindle 3/4"clearance LH (80010) +$39.00

Pre Load Spindle 3/4"clearance RH (80010) +$39.00

Pre Load Spindle 7/8"clearance LH (80015) +$51.00

Pre Load Spindle 7/8"clearance RH (80015) +$51.00

Pre Load Spindle 1-1/8"clearance LH (80020) +$51.00

Pre Load Spindle 1-1/8"clearance RH (80020) +$51.00

Pre Load Spindle 1-5/16"clearance LH (80025) +$51.00

Pre Load Spindle 1-5/16"clearance RH (80025) +$51.00

Pre Load Spindle 1-1/2"clearance LH (80030) +$51.00

Pre Load Spindle 1-1/2"clearance RH (80030) +$51.00

Help Me Decide

Select either Standard Spindle insert or 3° Pre Load Spindle

1 Choose Handing:
2 Choose Spindle:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special order non stock item with 4 week lead time.

Listed by U.L. and C.U.L. for use with fire doors.
ANSI size 5 for interior doors 2'-6"–4'-0" and exterior doors 2'-6"–3'-6" wide.
Floor closer and cement case.
Single-acting.
Closer body is handed.
Non-hold open only.
Mechanical backcheck at approximately 70º.
Recommended for applications using a wall magnet to hold a door open at 180º.
Certified to the requirements of ANSI/BHMA A156.4 for grade 1 closers.

Available Options: Choose Options Above

Handing:

Handing

The hand of a door is always determined from the outside.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door
- Left Hand (LH)
- Right Hand (RH)
Spindle:

Spindle

Select either Standard Spindle insert or 3° Pre Load Spindle
- No Spindle
- Spindle Insert- 5/16"clearance (74003)
- 1/2"Clearance (74005)
- 5/8"clearance (74007)
- Standard 3/4"clearance (74010)
- 13/16"clearance (74012)
- 7/8"clearance (74015)
- 1-1/8"clearance (74020)
- 1-5/16"clearance (74025)
- 1-1/2"clearance (74030)
- 1-11/16"clearance (74035)
- 1-7/8"clearance (74040)
- 2-1/16"clearance (74045)
- 2-5/16"clearance (74050)
- Pre Load Spindle 5/16"clearance LH (80003)
- Pre Load Spindle 5/16"clearance RH (80003)
- Pre Load Spindle 3/4"clearance LH (80010)
- Pre Load Spindle 3/4"clearance RH (80010)
- Pre Load Spindle 7/8"clearance LH (80015)
- Pre Load Spindle 7/8"clearance RH (80015)
- Pre Load Spindle 1-1/8"clearance LH (80020)
- Pre Load Spindle 1-1/8"clearance RH (80020)
- Pre Load Spindle 1-5/16"clearance LH (80025)
- Pre Load Spindle 1-5/16"clearance RH (80025)
- Pre Load Spindle 1-1/2"clearance LH (80030)
- Pre Load Spindle 1-1/2"clearance RH (80030)

More Info

The high quality performance, uncompromised standards and versatility of this BTS80 closer make it widely popular for use in very many applications. It can be used in or installations on single or doors that weigh up to six-hundred and sixty pounds. To make this closer adaptable to nearly all floor covering conditions, we offer a wide variety of spindle options to suit the needs of virtually any application.
