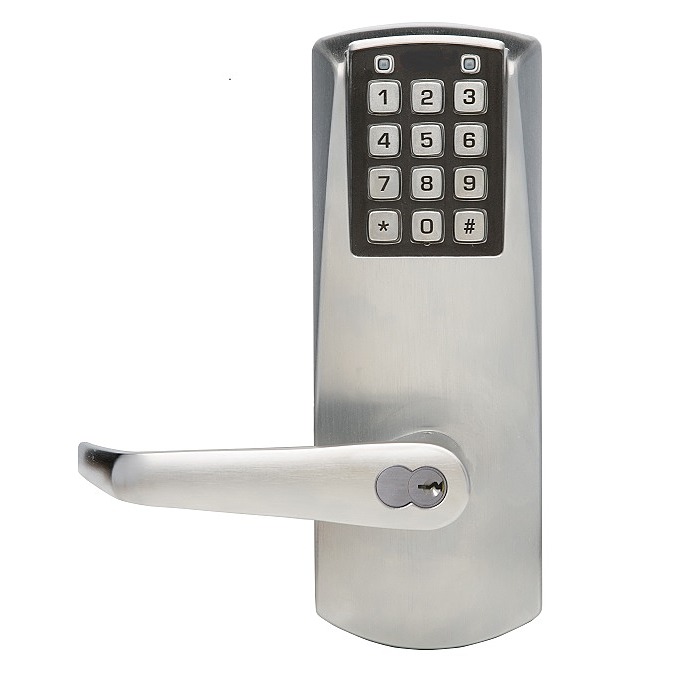

dormakaba E2031BLL-626

E-Plex Electronic Pushbutton Lock with IC Core Key Override

Quick Product Details

  • Electronic Pushbutton Lock
  • Heavy Duty
  • Provides Exterior Access by PIN Code, While Allowing Free Egress.
Price: $493.00 /each

SKU: E2031BLL-626

Choose Options Below

This Kaba Access Control E2031BLL E-Plex electronic pushbutton lock with IC core prep is a heavy duty commercial Grade 1 lockset that is cylindrical drive-wear tested for extensive use in indoor and outdoor applications.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $493.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed + $37.00 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$37.00
AWHOUSE  (Best type) IC Core + $36.00 AWHOUSE (Best type) IC Core +$36.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Quality and Safety:
  • ANSI/BHMA Grade 1 Certified.
  • Meets Americans with Disabilities Act (ADA) standards.
  • UL 10C fire rated.
  • 3 year limited warranty

Special Orders Available:
  •  Available with 2-3/8” backset
Contact us directly to place your special order.

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • AWHOUSE (Best type) IC Core
    • No IC Core Needed

Product at A Glance

  • Key Override feature is  prepped for Small format IC core Best and equivalent, IC core not included
  • Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C).
  • Powered with three AA Alkaline batteries
  • 100 user codes
  • Audit Trail - the most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
  • Authority Levels:
    • Master Level - performs all set-up and programming functions
    • Manager Level - administers common programming functions
    • Access User Level - Entry allowed with valid pin
    • Service Level - codes for single event or single day access, programmable in advance
    • Maintenance Level - no access is granted, but information can be uploaded/downloaded to/from the lock
  • Passage mode, can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Code length - adjustable to accept 4 to 8 digits
  • Keypad is vandal resistant with solid metal pushbuttons
Style Electronic Pushbutton lock
Grade Heavy Duty
Handing Pre-assembled for left-handed doors - easily field changeable
Door Thickness 1-5/8" to 2"
Backset 2-3/4" (standard)
Stile Minimum 5" required

More Info

Eliminate the hassle and inconveniences caused by the use of keys by simply installing this Kaba E-plex electronic pushbutton lock. Discard those keys and set up your electronic lock to safely allow access for those authorized with up to 100 codes. The audit trail feature will keep memory of the last 1,000 locking events including key override.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
