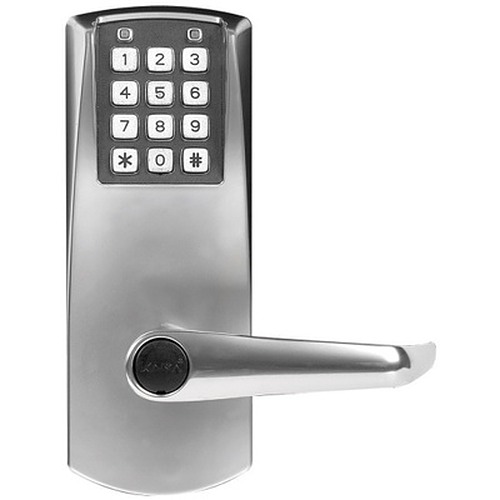

dormakaba E2032XSLL

Special Order E-Plex Electronic Pushbutton Lock with Key Override and 2-3/8 Backset

Quick Product Details

  • Electronic Pushbutton Lock
  • Heavy Duty
  • 2-3/8" backset
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time


Choose Options Below

This Kaba Access Control E2032XSLL is a high quality E-Plex electronic pushbutton lock with key override. It is designed for doors within the range of 1-5/8" to 2" thick with a 2-3/8" backset.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome
606 Satin Brass + $16.00 606 Satin Brass +$16.00


Special order non stock item with 4 week lead time
Quality and Safety:
  • ANSI/BHMA Grade 1 Certified.
  • Meets Americans with Disabilities Act (ADA) standards.
  • UL 10C fire rated.
  • 3 year limited warranty


Available Options: Choose Options Above

Product at A Glance

  • Powered with three AA Alkaline batteries.
  • Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C)
  • 100 user codes.
  • Audit Trail-the most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • Key Override feature is operated with a key-in-lever Kaba cylinder in Schlage "C" keyway, included.
  • Authority Levels - five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours.
  • Passage mode,can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Code length - adjustable to accept 4 to 8 digits
  • Keypad is vandal resistant with solid metal pushbuttons
Style Electronic Pushbutton lock
Grade Heavy duty
Handing Pre-assembled for left-handed doors - easily field changeable
Door Thickness 1-5/8" to 2"
Backset 2-3/8"
Stile Minimum 5" required

More Info

Keep track of the traffic at the entrance to your building with this wonderful pushbutton lock. It’s  audit trail records the last 1,000 events in it’s memory for later reference when necessary. This lock also includes five different access levels to control who enters when.
