dormakaba E2066-XSLL-626

Special Order Digital Mortise Push Button Lock with Key Override

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: E2066-XSLL-626

Choose Options Below

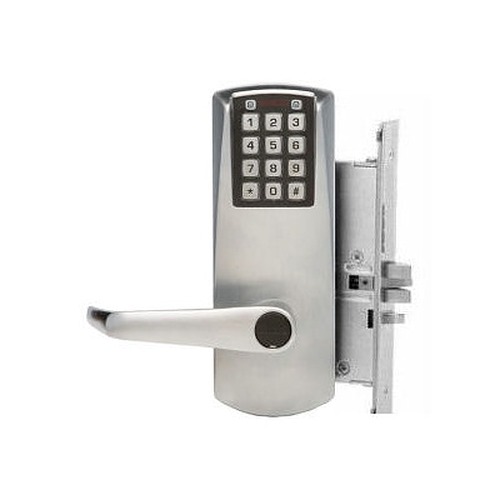

Kaba E-plex E2066-XSLL Electronic Pushbutton Mortise Lock with key override.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview

Special order item with 4 week lead time
  • Electronic pushbutton mortise lock with key override.
  • 100 pin access codes, adjustable to accept 4 to 8 digits.
  • Battery Powered-three AA Alkaline batteries provide up to 100,000 cycles, lock data is maintained if batteries fail.
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field.
  • The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • Key override- Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage ”C“ Keyway.

Available Options: Choose Options Above

More Info

  • Authority levels, five different levels allow who has access to specific lock functions, including:
    Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours.
  • Backset: 2-3/4"
  • 5" minimum stile required.
  • Door thickness-1-3/4"  to 2-1/8".
  • ANSI/BHMA Grade 1 certified
  • Indoor/Outdoor approved, -31 °F (-35 °C) to 151 °F (66 °C)
  • Meets standards or Americans with Disabilities Act (ADA).
  • UL 10C fire rated.
