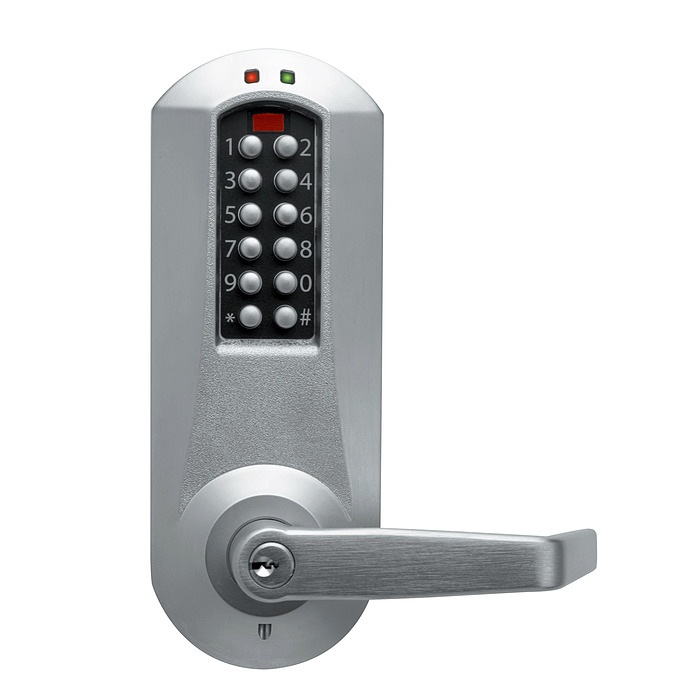

dormakaba E5010-XSWL-626

E-Plex Digital Pushbutton Exit Device Lock

Price: $757.00 /each

SKU: E5010-XSWL-626

The Kaba Access E-Plex 5010XSWL is a battery operated digital pushbutton exit device lock. With 100 codes and Audit trail. Compatible with most leading brands of Rim Exit Devices. Key Override-Kaba Cylinder, Schlage "C" Keyway INCLUDED.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 36 hours 49 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


  • Extra heavy-duty Grade 1 lock  for  indoor/outdoor use.
  • For use with Rim exit devices only.
  • Cannot be used with mortise design or vertical rod exit devices.
  • Locks are programmed via keypad or with optional Microsoft® Excel®-based software.
  • 100 access codes per door, upgrade to 300 via software.
  • Audit trial, 3,000 events including use of the mechanical key override. Software is required to view audit events,upgrades to 9,000 events with optional software.
  • Non-handed  pre-assembled for left-hand door installations easily changed in the field.
  • Key override-Kaba cylinder Schlage "C" Keyway included.
  •  Battery operated, four AA Alkaline batteries provide up to 180,000 cycles.
  • Pre-assembled to accommodate doors 1-5/8"  to 2" thick.
  • Satin chrome finish.

More Info

Exit Device Compatibility, Corbin Russwin ED5200/5200A,Cal Royal 9800 and 2200, Dorma 9300/F9300, Precision 21/FL21, Sargent 2828,3828,8800 and 8888,Von Duprin 22/22F,98/98F,99/99F,XP98/99, Yale 2100 and 7100.
  • Authority Levels,five different levels allow who has access to specific lock functions, including:  Service Codes—programmed for one-time access or "come-and-go" access.for 1 to 24 hours.
  • Code length—adjustable to accept 4 to 8 digits.
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
  • Re-lock time—adjustable from 2 to 20 seconds.
  • 3-hour, UL/ULC fire door rating for "A" labeled doors.
  • Meets requirements for Americans with Disabilities Act, ADA.
  • Minimum stile required- 5".
