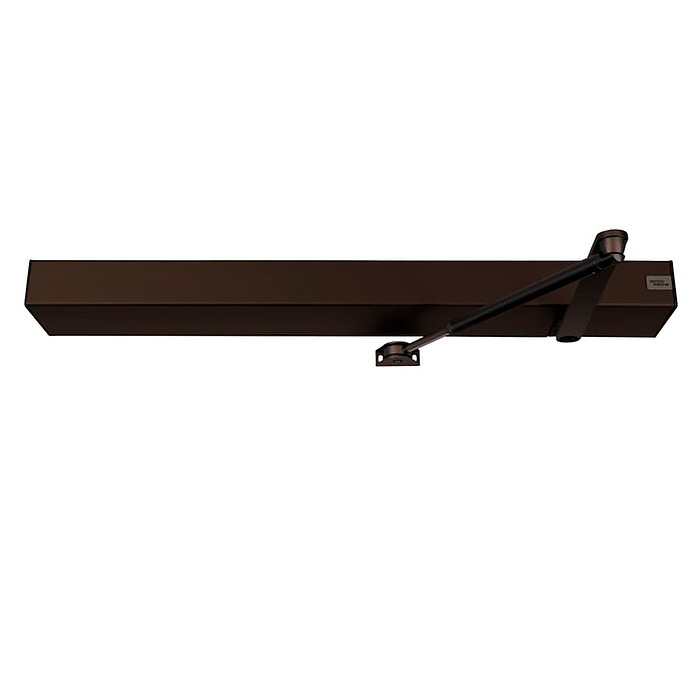

dormakaba ED100LE-DB

Special Order Low Energy Swing Door Operator

Price: $4,791.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: ED100LE-DB

The ED100LE Low Energy Swing Door Operator employs an innovative, and super-quiet, electromechanical drive that is a perfect solution for facilities who want a quick, quiet, and painless transition from manual doors to touch-free access such as commercial buildings, hospitals, schools, hotels and multifamily buildings. DB finish (Dark Bronze)

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Advanced power assist
The ED100LE combines advanced power assist, reliable closing, and special firmware capabilities to help manage the combination of wind and building pressure.

Fully ADA compliant
The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.

Advanced features
The ED100LE also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.

Small footprint
In addition, the ED100LE low energy operator boasts a small footprint, up to 65 percent smaller than some other manufacturers' operators.

Product at A Glance

Technical Details:
  • ​Onboard power supply for access control devices: 1.5 A @ 24 VDC.
  • Maximum door size: 48" (1219 mm) wide.
  • Maximum recommended door weight: 400 lb (181 kg)*
  • Operator weight: 26.58 lb (12 kg).
  • Operating temperatures: 5° F to 122° F (−15° C to 50° C).
  • Standard operator dimensions: 27" W × 2-3/4" H × 5-1/8" D (685 mm × 70 mm × 130 mm).
  • Maximum opening angle: Powered—110°
  • Non-handed
*Doors up to 600 lb (272 kg) under limited conditions. Please consult the factory for doors over recommended weight limits.
