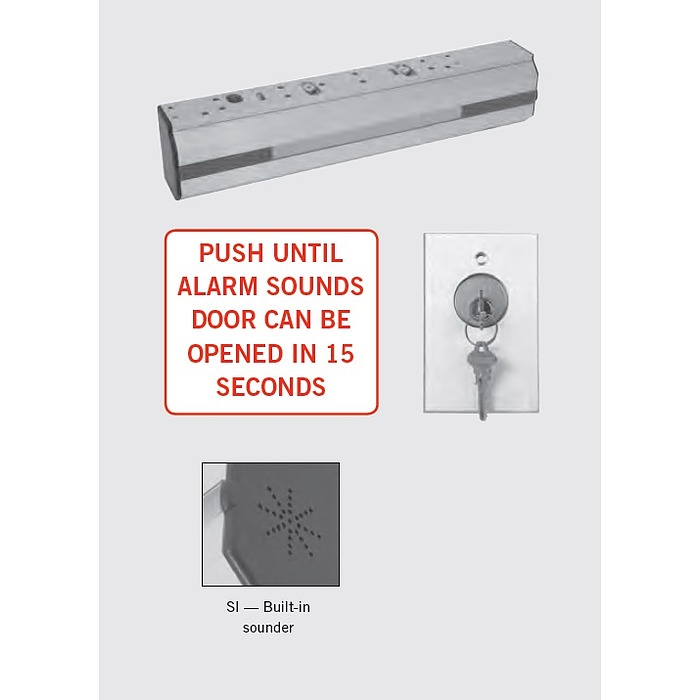

dormakaba EMDE-SI-689

Delayed Egress Electromagnetic Lock with Integral Sounder

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EMDE-SI-689

Choose Options Below

The Dorma EMDE-SI is an All-in-one All-in-one delayed egress mag lock with a built-in sensor detects pressure applied to outward swinging doors. Built-in sounder make this ideal for applications requiring loss prevention, life safety, and traffic control.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

628 Clear Anodized Aluminum 628 Clear Anodized Aluminum

Overview

Special order non stock item with 4 week lead time
  • 1200 lb holding force.
  • Built in sensor detects when pressure is applied to outward swinging doors—no need to
    replace existing door hardware.
  • Field selectable 15 or 30 second release delay with field selectable 0 to 3 second nuisance delay.
  • Built-in bond alert (BA) sensor feature indicates that the door is closed and bonded.
  • Dry contact SPDT and DPDT relays provided for local and/ or remote monitoring.
  • Includes keyswitch for reset and override, 15 second building code sign; base unit includes built-in sounder.

Available Options: Choose Options Above

Product at A Glance

  • All-in-one delayed egress lock.
  • Auto sensing voltage from 12 to 24 VDC.
  • Unique highly visible Red/ Green light panel indicates status of door.

More Info

  • UL/CUL listed for use on fire doors rated up to 1-1/2 hr.
