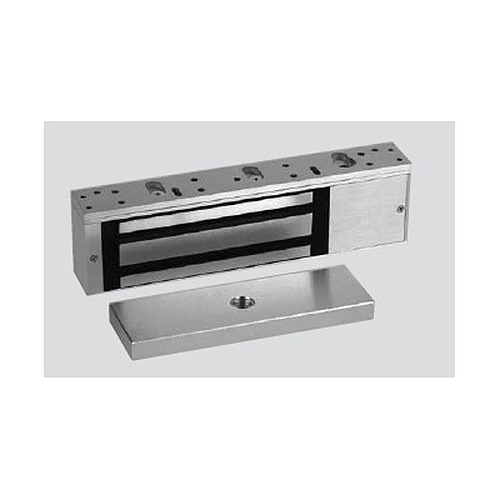

dormakaba EML310-693

Special Order Electromagnetic Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EML310-693

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • 1500 lb holding force.
  • Black finish.
  • Adjustable keyhole mounting.
  • Field selectable voltage—12/24 VDC.
  • Built-in time delay (instant release with adjustable re-lock, programmable from 0–110 seconds.
  • Plug-in wiring terminals.

More Info

  • MOV surge protection.
  • Housing Dimensions-1-5/8" D × 2-7/8" W × 10-1/2" L.
  • Armature Plate Dimensions, 5/8" D × 2-3/8" W × 7-7/16" L.
  • Power/Current Requirements,Max 0.28 A at 12 VDC, Max 0.28 A at 24 VDC.
  • Operating Temperature 14 to 140° F.
  • No residual magnetism.
  • ANSI/BHMA 156.23, Grade 1 listed.
  • UL/CUL listed under their continuing reinspection programs and
    conforms to standards UL 10C and GWXT positive pressure fire
    testing, 1 hour fire rated UL294.
