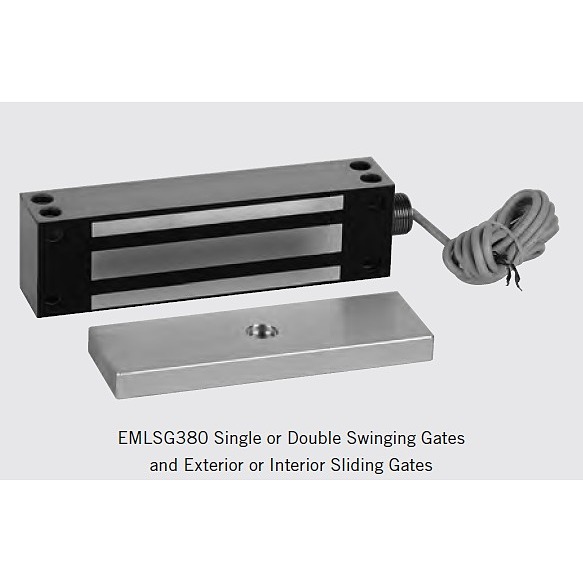

dormakaba EMLSG380-630

Special Order Weather Resistant Electromagnetic Gate Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EMLSG380-630

The Dorma EMLSG380-630 is the ideal solution for perimeter security and internal gates, with a rugged, stainless-steel housing. The magnet's standard remote bond alert (RBA) indicates whether it is locked or unlocked, so you can easily monitor access from a remote location

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time.
  • Weather resistant electromagnetic gate lock.
  • Up to 1500 lb holding force.
  • Stainless steel housing.
  • Field selectable voltage—12/24 VDC.
  • MOV surge protection.
  • Housing Dimensions 1-3/4" D × 2-1/2" H × 8-7/8" L.
  • Armature plate dimensions,5/8" D × 2-3/8" H × 7-7/16" L.

More Info

  • Conduit fitting inside diameter 1/2".
  • Conduit fitting outside diameter 3/4".
  • No residual magnetism.
  • weather-resistant.
  • UL/CUL listed for use on fire doors rated up to 1-1/2 hr.
  • Power/Current requirements, Max 0.48 A @ 12 VDC, Max 0.24 A @ 24 VDC.
  • Output contacts, Remote bond alert (RBA) reed contacts—max 0.20 A @ 12 VDC and 0.12 A @ 24 VDC.
  • Operating Temperature 14º F to 140 ºF (–10º C to 60º C).
  • DORMA recommends frame reinforcement and our filtered, regulated DC voltage power supplies.
