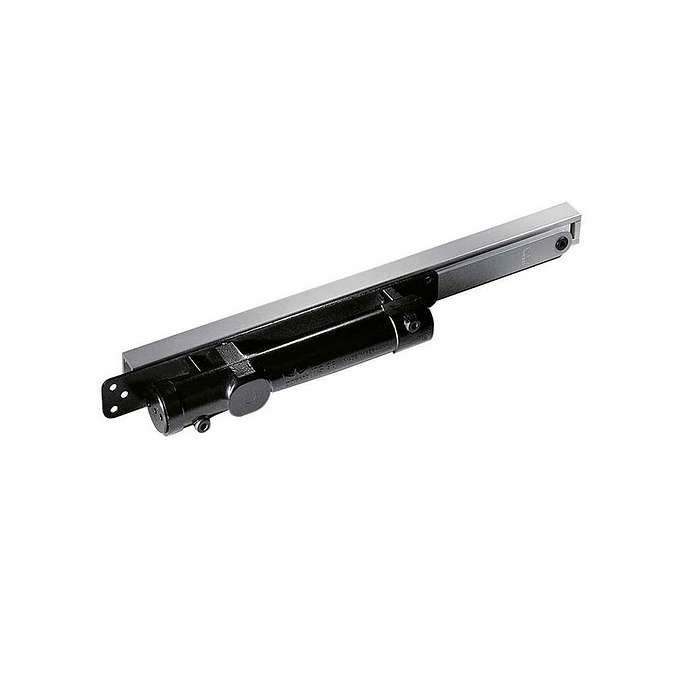

dormakaba ITS96-INV-25

Concealed in Header Closer

Quick Product Details

  • INV-Concealed-in-Door Closer-Closer in Header and Track in Door.
  • For interior wood, hollow metal and aluminum doors
  • Standard Duty
  • Limited Stock - Fast Mover - Contact us at 866-749-7661 for availability
Price: $474.00 /each

SKU: ITS96-INV-25

Choose Options Below

This Dorma INV ITS9625 is an Inverted ITS with the closer in header and the track gets mounted in the frame. It is designed for interior aluminum, hollow metal or wooden doors that weigh up to 175 pounds on interior doors and are a minimum of 1-3/4" thick. Spring size is adjustable from 2 to 5 for various door sizes, weights, and field conditions.

  • Stock Item
  • Order in the next 14 hours 14 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $474.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

No Hold Open (NHO)

Help Me Decide

Hold open - a mechanism within a closer which allows a door to remain in an open position

No hold-open

Door does not remain open

Hold-open

Door can be set to remain open at any point between 80° and  120°

Choose Finish:

693-Sprayed Black 693-Sprayed Black
689-Sprayed Aluminum 689-Sprayed Aluminum

Overview

Limited stock product. Please conatct us at 866-749-7661 to confirm availability.
  • INV- Inverted ITS, closer in header. Install the ITS96 closer body in the header and the track in the frame.
  • Interior wood, hollow metal and aluminum doors.
  • ​​U.L. & C.U.L. listed.
  • Meets UL10C and UBC 7.2 (1997) for positive pressure.
​​

Available Options: Choose Options Above

  • Hold Open: info icon

    • No Hold Open (NHO)
  • Finish:

Product at A Glance

  •  Features an aluminum body with steel cam and roller design
  • For interior wood, hollow metal, and aluminum doors and frames
  • Adjustable spring size 2-5 to meet barrier-free requirements
  • Optional hold open adjustable between 80° and 120°
  •  Includes two valves to separately control sweep and latch speeds .
  • Cushioned stop position adjustable between 80° - 130° (separate limiting stop required for doors in abusive conditions).
Style INV-Concealed-in-door closer
Application Interior doors
Grade Standard Duty
Door Handing Non-handed
Door Weight - Interior - maximum 175 lbs.
- Exterior - maximum 125 lbs.
Door Width Maximum 36"
Door Thickness Minimum 1-3/4"
Door Opening Maximum (approximately) 130°

More Info


Concealed door closers are very often required in various applications and this Dorma ITS96 series closer is the ideal solution. This closer is suitable for nearly all applications and door and frame combinations. When using this closer the door will have the ability to open to approximately 130°. The closer body is made of aluminum for quality and strength.
