dormakaba ITS9613-606 X BRKTWD

Special Order Concealed in Door Closer for Wood Doors and Frame

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ITS9613-606 X BRKTWD

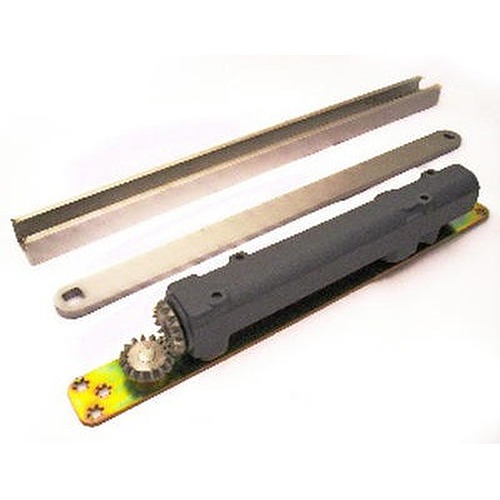

Dorma ITS9613-BRKTWD concealed in door closer. For 1-3/4" thick interior wood doors and frames. Install the ITS9613 closer body in the door with the track in the frame. Accommodates interior doors up to 36" wide and 125 lbs. maximum. Adjustable spring power from size 1-3 to meet barrier-free requirements. Includes Wood frame mounting kit.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

special order non stock item with 4 week lead time
  • Satin brass finish.
  • Includes wood frame mounting kit, BRKTWD.
  • Installs in 1-3/4" thick doors minimum
  • Install the ITS96 closer body in the door with the track in the frame.
  • Aluminum body with steel cam and roller design
  • For interior wood doors and frames.
  • Accommodates interior doors up to 36" wide and 125 lbs. maximum.
  • Non handed.
  • Adjustable spring size is 1-3 to meet barrier-free requirements.

More Info

  • Optional hold open adjustable between 80º and 120º.
  • Two valves to separately control sweep and latch speeds .
  • Maximum door opening approximately 130º.
  • Cushioned stop position adjustable between 80º-130º
    (separate limiting stop required for doors in abusive conditions).
  • listed by U.L. and C.U.L.
  • Meets the requirements for UL10C and UBC 7.2 (1997) for positive pressure.
