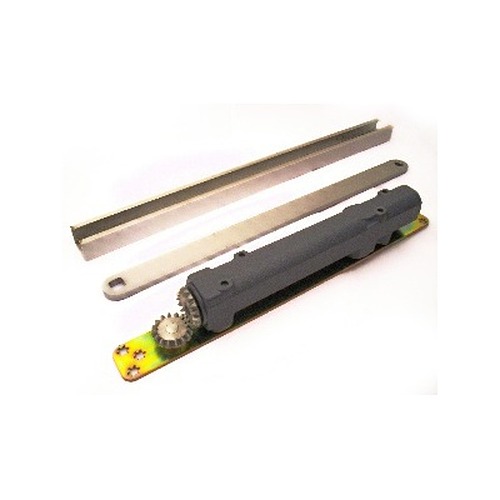

dormakaba ITS9613-689

Concealed in Door Closer

Quick Product Details

  • Concealed-in-Door Closer
  • For interior wood, hollow metal and aluminum doors
  • Standard Duty
Price: $384.00 /each

SKU: ITS9613-689

Choose Options Below

This Dorma ITS9613 is a standard duty closer . Its body gets mounted into the door and the track gets mounted into the frame. It is designed for interior aluminum, hollow metal or wooden doors that weigh up to 125 pounds and are a minimum of 1-3/4" thick. Spring size is adjustable from 1 to 3 to meet barrier free requirements.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $384.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

Hold Open (HO) +$52.00
No Hold Open (NHO)

Help Me Decide

Hold open - a mechanism within a closer which allows a door to remain in an open position

No hold-open

Door does not remain open

Hold-open

Door can be set to remain open at any point between 80° and  120°

Overview


Suited for:
  • Interior wood, hollow metal and aluminum doors

Quality and Safety:
  • U.L. & C.U.L. listed.
  • Meets UL10C and UBC 7.2 (1997) for positive pressure
  • 5 year limited warranty



Available Options: Choose Options Above

  • Hold Open: info icon

    • Hold Open (HO)
    • No Hold Open (NHO)

Product at A Glance

  • Install the ITS96 closer body in the door and the track in the frame.
  • 689-Aluminum finish.
  •  Features an aluminum body with steel cam and roller design
  • For interior wood, hollow metal, and aluminum doors and frames
  • Adjustable spring size 1-3 to meet barrier-free requirements
  • Optional hold open adjustable between 80° and 120°
  •  Includes two valves to separately control sweep and latch speeds .
  • Cushioned stop position adjustable between 80° - 130° (separate limiting stop required for doors in abusive conditions).
Style Concealed-in-door closer
Application Interior doors
Grade Standard Duty
Door Handing Non-handed
Door Weight Maximum 125 lbs
Door Width Maximum 36"
Door Thickness Minimum 1-3/4"
Door Opening Maximum (approximately) 130°

More Info


Concealed door closers are very often required in various applications and this Dorma ITS96 series closer is the ideal solution. This closer is suitable for nearly all applications and door and frame combinations. When using this closer the door will have the ability to open to approximately 130°. The closer body is made of aluminum for quality and strength.
