dormakaba ITS9625-HO-BRKTW-693

Special Order Concealed in Door Closer with Hold Open

Quick Product Details

  • Overhead Concealed Door Closer
  • Standard Duty
  • For Exterior and Interior Wood Doors and Frames
  • Wood frame Mounting Kit
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ITS9625-HO-BRKTW-693

Choose Options Below

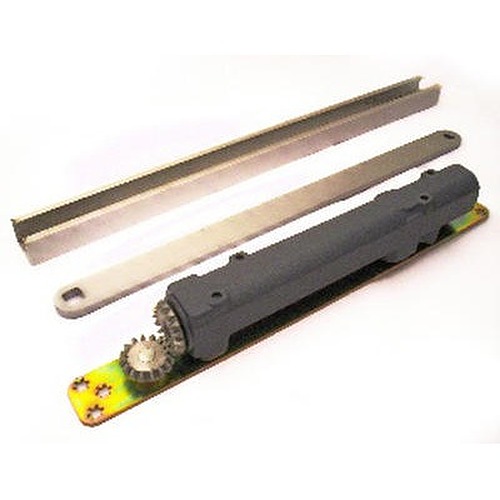

Dorma ITS9625-693 is a concealed-in-door closer for 2" thick interior or exterior wood, hollow metal, and aluminum doors and frames. The closer body gets installed in the door and the track in the frame.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

693-Black 693-Black

Overview

Special order non stock item with 8 week lead time


Quality and Safety:

  • Listed by U.L. and C.U.L.
  • Meets the requirements for UL10C and UBC 7.2 (1997) for positive pressure.

Available Options: Choose Options Above

Product at A Glance

  • The closer body gets installed in the door and the track in the frame.Aluminum body with steel cam and roller design
  • Adjustable spring size from 2-5
  • Includes two valves to separately control sweep-speed and latch-speed.
  • Cushioned stop position adjustable between 80º-130º (separate limiting stop required for doors in abusive conditions).
Style Concealed Overhead Door Closer
Finish Black-693
Grade Standard Duty
Door Handing Non-handed
Door Width - Interior - maximum 48"
- Exterior - maximum 36"
Door Weight - Interior - maximum 175 lbs.
- Exterior - maximum 125 lbs.
Door Thickness Minimum 2"
Opening Degrees Maximum (approximately) 130°
Hold Open Hold Open Adjustable Between 80° and 120°.
