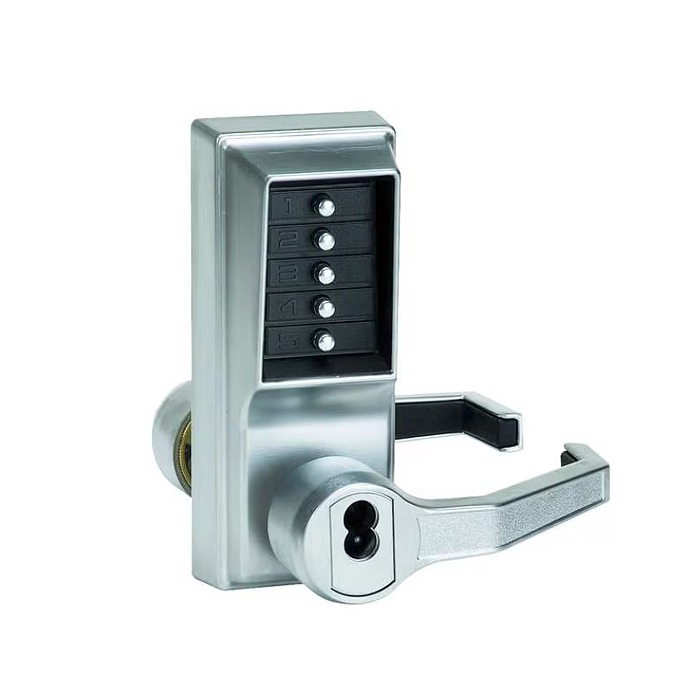

dormakaba L1041-26D

Special Order Heavy Duty Mechanical Pushbutton Lever Lock with Key Override and Passage Mode

Quick Product Details

Mechanical Pushbutton Lever Lock
Passage Mode
Heavy Duty

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: L1041-26D

Choose Options Below

This Kaba Access Control L1031-26D is a Simplex mechanical pushbutton lever lock. It is supplied with the passage mode which, when set, allows free entry without using the combination code or key override but by activating it with a key on the outside or thumbturn on the inside.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand/Left Hand Reverse (LL)

Right Hand/Right Hand Reverse (LR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed
If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed
If the door swings towards you, it is Right Hand Reversed

Choose Key Override:

Need Help Deciding?

Prepped For B-Best Type Interchangeable Cores (Core not Included) L1021B

Prepped For C-Corbin Russwin Removable Cores (Core not Included) L1021C

Prepped For M-Removable Cores Yale-Medeco-Assa (Core not Included) L1021M

Prepped For R-Sargent Removable Cores (Core not Included) L1021R

Prepped For S-Schlage Removable Cores (Core not Included) L1021S

Help Me Decide

Select the core which your lock (for the key override feature) should be prepped for. The core is not included with this lock but can be found in the
Related Products section.

B- Best type small format 6 or 7 pin
C-Corbin Russwin large format-removable core
M-Yale-Medeco-Assa large format-removable core
R-Sargent large format-removable core
S-Schlage large format-removable core

1 Choose Handing:
2 Choose Key Override:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

Three-hour UL/ ULC Fire rating for "A" label doors.
3 year limited warranty

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed

If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed

If the door swings towards you, it is Right Hand Reversed
- Left Hand/Left Hand Reverse (LL)
- Right Hand/Right Hand Reverse (LR)
Key Override:
Key Override
Select the core which your lock (for the key override feature) should be prepped for. The core is not included with this lock but can be found in the
Related Products section.

B- Best type small format 6 or 7 pin

C-Corbin Russwin large format-removable core

M-Yale-Medeco-Assa large format-removable core

R-Sargent large format-removable core

S-Schlage large format-removable core
- Prepped For B-Best Type Interchangeable Cores (Core not Included) L1021B
- Prepped For C-Corbin Russwin Removable Cores (Core not Included) L1021C
- Prepped For M-Removable Cores Yale-Medeco-Assa (Core not Included) L1021M
- Prepped For R-Sargent Removable Cores (Core not Included) L1021R
- Prepped For S-Schlage Removable Cores (Core not Included) L1021S

Product at A Glance

The passage mode allows access without using the lock entry code. The feature is activated from the inside with a thumbturn or a key (included).
The pin access can easily be programmed at the door
One combination code is used per lock, made of any combination of one to five numbers
Accepts IC Core, specify required compatibility
Retrofits cylindrical and tubular locksets with 2-3/4" backset.
The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
This lock is weather resistant

Style	Mechanical Pushbutton Lever lock
Grade	Heavy duty
Handing	Handed
Door Thickness	1-5/8" to 2"
Backset	2-3/4" (standard)
Stile	Minimum 5" required
Finish	Satin chrome (626)

More Info

Kaba mechanical pushbutton locks are a convenient and practical solution for access control of a private area. It is often used in applications such as the entrance to an apartment building or office complex. The lock is operable by inserting a code between one and five digits that is programmed to allow access or using a . The passage mode feature allows the lock to be set to enable free use of the lock without a code.
