dormakaba L1041S-41-26D

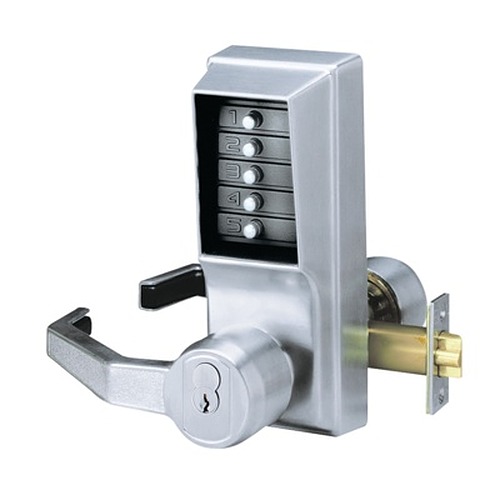

Special Order Simplex Heavy Duty Mechanical Pushbutton Lever Lock with Passage Mode and Key Override

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: L1041S-41-26D

Choose Options Below

Simplex L1000 series of mechanical pushbutton Lever locks offer a convenient way to control access between public and private areas. With the Simplex L1041 with passage mode there are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand/Left Hand Reverse (LL)
Right Hand/Right Hand Reverse (LR)

Help Me Decide


Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed


Special order item with 4 week lead time.
  • Passage mode. Allows access without using the lock entry code feature, activated from the inside with a thumbturn or key, included.
  • Key override-prepped for Schlage type large format interchangeable core, core not included.
  • Pin access easily programed at the door.
  • Satin chrome finish, 26D.
  • Combination code-one code per lock made of any combination of one to five numbers.
  • Retrofits cylindrical and tubular lock sets with 2-3⁄4" backset.
  • Handed, not field reversible.
  • Numeric pushbuttons-vandal resistant, 5 button, anodized aluminum.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand/Left Hand Reverse (LL)
    • Right Hand/Right Hand Reverse (LR)

More Info

  • Door thickness- pre-assembled to accommodate 1-5⁄8" to 2" doors.
  • Minimum stile requirement-5".
  • Weather resistant.
  • Fire rating-Three-hour UL/ ULC Fire rating for "A" label doors.
