dormakaba L1076

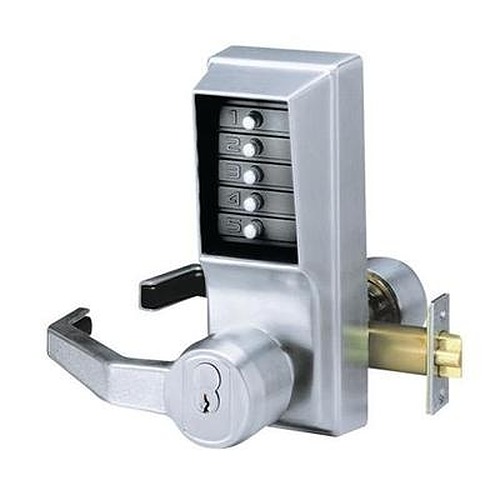

Special Order Simplex Heavy Duty Mechanical Pushbutton Lever Lock with Key Override and Privacy

Quick Product Details

Mechanical Pushbutton Lever Lock With Key Override and privacy Feature.
Heavy Duty

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: L1076

Choose Options Below

This Kaba Access Control L1076 Simplex mechanical pushbutton lever lock includes the key override feature using a small format interchangeable core (Best type) or a large format removable core(core not included) and privacy feature. It will retrofit cylindrical and tubular locksets with a 2-3/4" backset. The combination can be changed in seconds without removing the lock from the door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Key Override:

Need Help Deciding?

Prepped For B-Best Type Interchangeable Cores (Core not Included) L1021B

Prepped For C-Corbin Russwin Removable Cores (Core not Included) L1021C

Prepped For M-Removable Cores Yale-Medeco-Assa (Core not Included) L1021M

Prepped For R-Sargent Removable Cores (Core not Included) L1021R

Prepped For S-Schlage Removable Cores (Core not Included) L1021S

Help Me Decide

Select the core which your lock (for the key override feature) should be prepped for. The core is not included in this package but can be found in the
cylinder category, IC Core section.

B- Best type small format 6 or 7 pin
C-Corbin Russwin large format-removable core
M-Yale-Medeco-Assa large format-removable core
R-Sargent large format-removable core
S-Schlage large format-removable core

Choose Handing:

Left Hand/Left Hand Reverse (LL)

Right Hand/Right Hand Reverse (LR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed
If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed
If the door swings towards you, it is Right Hand Reversed

Choose Finish:

US26D (626) Satin Chrome

US3 (605) Polished Brass +$15.00

US5 (609) Antique Brass

1 Choose Key Override:
2 Choose Handing:
3 Choose Finish:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special order non stock item with 4 week lead time
Quality:

Combination Entry, Key Override, and Privacy (lockout).
Three-hour UL/ ULC Fire rating for "A" label doors.
ADA compliant levers
3 year limited warranty

Available Options: Choose Options Above

Key Override:
Key Override
Select the core which your lock (for the key override feature) should be prepped for. The core is not included in this package but can be found in the
cylinder category, IC Core section.

B- Best type small format 6 or 7 pin

C-Corbin Russwin large format-removable core

M-Yale-Medeco-Assa large format-removable core

R-Sargent large format-removable core

S-Schlage large format-removable core
- Prepped For B-Best Type Interchangeable Cores (Core not Included) L1021B
- Prepped For C-Corbin Russwin Removable Cores (Core not Included) L1021C
- Prepped For M-Removable Cores Yale-Medeco-Assa (Core not Included) L1021M
- Prepped For R-Sargent Removable Cores (Core not Included) L1021R
- Prepped For S-Schlage Removable Cores (Core not Included) L1021S
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed

If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed

If the door swings towards you, it is Right Hand Reversed
- Left Hand/Left Hand Reverse (LL)
- Right Hand/Right Hand Reverse (LR)
Finish:

Product at A Glance

The key override feature can be prepped to fit small format interchangeable core (Best type) or large format removable cores
Privacy- disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
The pin access code can be easily programed at the door
One combination code is used per lock made of any combination of one to five numbers
Retrofits cylindrical and tubular locksets with a 2-3/4" backset
The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
This lock is weather resistant

Style	Mechanical Pushbutton lever lock with key override
Grade	Heavy Duty
Handing	Handed
Door Thickness	1-5/8" to 2"
Backset	2-3/4"
Stile	Minimum 5" required
Privacy	Disables the lock from the inside so that the entry code cannot be used to gain access.

More Info

Mechanical pushbutton locks are very useful in areas where multiple people require access and the use of keys has become impractical. This lock is operated with one pin number which can be simply programed at the door. The combination consists of one to five numbers which are pressed either individually or simultaneously.
