dormakaba LP1010-26D

Mechanical Pushbutton Exit Device Lock with Lever

Quick Product Details

Mechanical Pushbutton Exit Device Lock
With Lever

Price: $548.00 /each

SKU: LP1010-26D

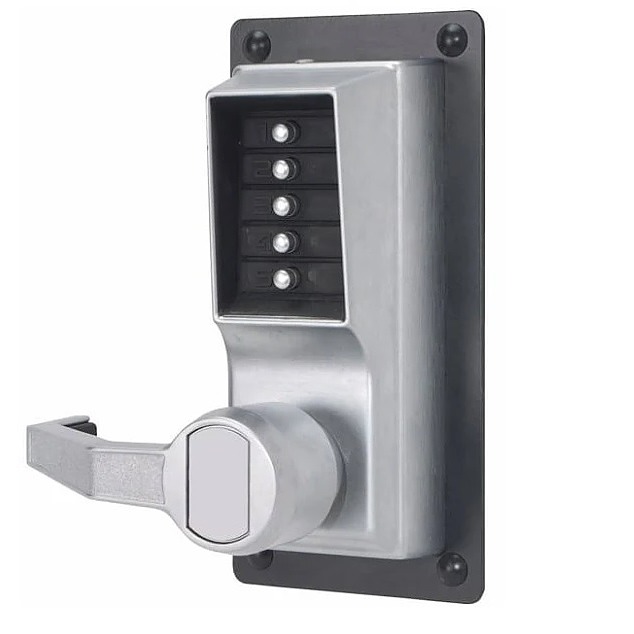

This Kaba Access Control LP1010-26D is a mechanical pushbutton Exit device lock with a lever. It is operated with one combination code per lock, consisting of one to five numbers. This lock cannot be used with mortise locks and most vertical rod exit devices.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $548.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

1 Choose Handing:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

ANSI/BHMA A156.2, Grade 1 Certified.
Three-hour UL/ ULC Fire rating for "A" label doors.
Meets Americans with Disabilities Act (ADA) for lever equipped lock
3 year limited warranty

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)

Product at A Glance

No key override
One combination code per lock made of any combination of one to five numbers
The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
Cannot be used with mortise design or most vertical rod Exit Devices

Style	Mechanical Pushbutton Exit Device lock With Lever
Used With	Von Duprin Exit Only (EO) or Exit Only Fire (EOF) 22, 88 NL, 98 and 99. Dorma 9100, 9300, 9400, Detex Advantex Series 10, 20, 21, 40, 50, 51 exit devices
Handing	Handed
Door Thickness	1-3/8" to 2-1/4"
Backset	2-3/4" (standard)
Stile	Minimum 5" required
Finish	Satin chrome (626)

More Info

This mechanical pushbutton lock with lever is designed to be used with exit devices in heavy duty applications. This lock will enable exterior access by combination while allowing free egress with the use of the exit device. It will however, not work with or most vertical rod exit devices. It requires a minimum of 5”.
