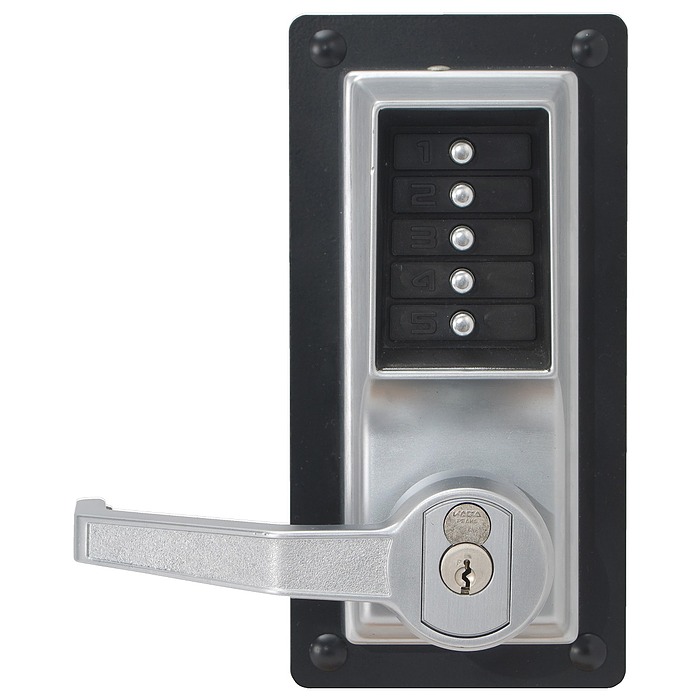

dormakaba LP1020-26D

Mechanical Pushbutton Exit Device Lock with Lever and Key Override

Quick Product Details

Mechanical Pushbutton Exit Device Lock
With Lever and IC Core Key Override, Core Not Included

Price: $591.00 /each

SKU: LP1020-26D

This Kaba Access Control LP1020-26D heavy duty, mechanical pushbutton, exit device lock features a lever and IC Core key override. The lock is prepped for the core you select below but it does not come supplied with the actual core.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $591.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Key Override:

Prepped For B-Best Type Interchangeable Cores (Core not Included) LP1020B

Prepped For S-Schlage Removable Cores (Core not Included) LP1020S

Help Me Decide

Select the core which your lock (for the key override feature) should be prepped for. The core is not included in this package but can be found in the Related Products section.

B - Prepped for I/C Best and Equivalents small format 6 or 7-pin length
S-Prepped for RC Schlage large format IC core

1 Choose Handing:
2 Choose Key Override:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

ANSI/BHMA A156.2, Grade 1 Certified.
Three-hour UL/ ULC Fire rating for "A" label doors.
Meets Americans with Disabilities Act (ADA) for lever equipped lock
3 year limited warranty

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Key Override:
Key Override
Select the core which your lock (for the key override feature) should be prepped for. The core is not included in this package but can be found in the Related Products section.

B - Prepped for I/C Best and Equivalents small format 6 or 7-pin length

S-Prepped for RC Schlage large format IC core
- Prepped For B-Best Type Interchangeable Cores (Core not Included) LP1020B
- Prepped For S-Schlage Removable Cores (Core not Included) LP1020S

Product at A Glance

Key override - select above
Core is not included
One combination code per lock made of any combination of one to five numbers
The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant
Cannot be used with mortise design or most vertical rod Exit Devices

Style	Mechanical Pushbutton Exit Device lock With Lever and key override
Used With	Von Duprin Exit Only (EO) or Exit Only Fire (EOF) 22, 88 NL, 98, and 99. Dorma 9100, 9300, 9400, Detex Advantex Series 10, 20, 21, 40, 50, 51,Cal Royal 5000/F5000 exit devices
Handing	Handed
Door Thickness	1-3/8" to 2-1/4"
Backset	2-3/4" (standard)
Stile	Minimum 5" required
Finish	Satin chrome (626)

More Info

Mechanical pushbutton locks serve to eliminate the hassle and expense caused by locks that operate with the use of a key. This lock is for use with exit devices to control and restrict access from the exterior of the door. One combination code made of 1 to 5 digits is used to operate this lock. Kaba backs this product with a three year limited warranty.
