dormakaba P2066-B-LL-626

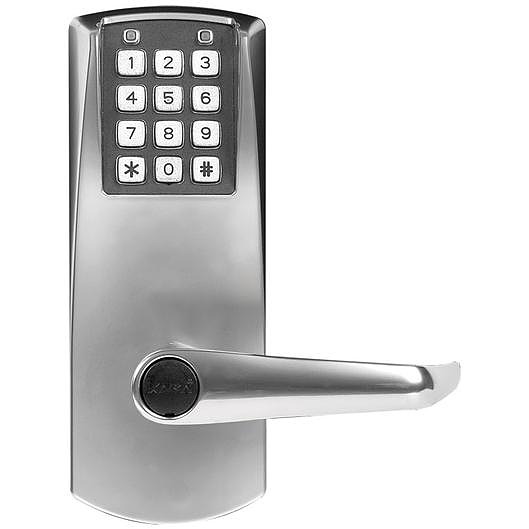

Special Order PowerPlex Self-Powered Mortise Electronic Digital Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: P2066-B-LL-626

The Kaba PowerPlex P2066BLL is an Electronic pushbutton mortise lock that does not require batteries or other power sources. The lock generates its own power with every turn of the lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Technology

Special order item with 4 week lead time.

  • Standard 1-1/4" wide face plate for mortise locks without deadbolt.
  • Requires no wiring to or through the door. Self-Powered with PowerStar technology , the lock generates its own power with every turn
    of the lever.
  • Charge Lasts up to 10 Weeks.
  • Multiple Users—100 codes, 4 to 8 digits
  • Audit Trail, The most recent 1,000 lock events are recorded in memory, including use of the
    mechanical key override. Software is required to view audit events.
  • Non-handed, pre-assembled for left-hand door installations, easily changed in the field.
  • Lock is easily programmed via keypad or with optional Microsoft® Excel®-based
    software.
  • Key Override, prepped for Best type small format IC core. Core not included.
  • Satin Chrome 626 (26D)
  • 2-3/4" backset, 5" minimum stile
  • Door thickness, pre-assembled to accommodate doors 1-3⁄4" to 2-1/8".

More Info

  • Heavy-duty commercial ANSI/BHMA Grade 1 Certified lockset, wear tested for extensive use in indoor and outdoor applications.
  • Self Powering — Kaba’s patented PowerStar™ technology supplies power for all
    electronic lock functions including programming users at the keypad without ever
    having to change batteries. Once the first digit of a valid code is entered to “wake up”
    the lock, the remainder of the code can be entered and access is granted. A full charge
    of the built-in super capacitors will last up to 10 weeks with no activity at the lock.
  • Authority Levels:
    Five different levels allow who has access to specific lock functions, including:
    Master Level — performs all set-up and programming functions
    Manager Level — administers common programming functions
    Access User Level — entry granted with valid PIN
    Service Level — codes for single event or single day access, programmable
    in advance
    Maintenance Level — no access is granted, information can be uploaded/downloaded
    to/from the lock.
  • UL 10C Fire rated
