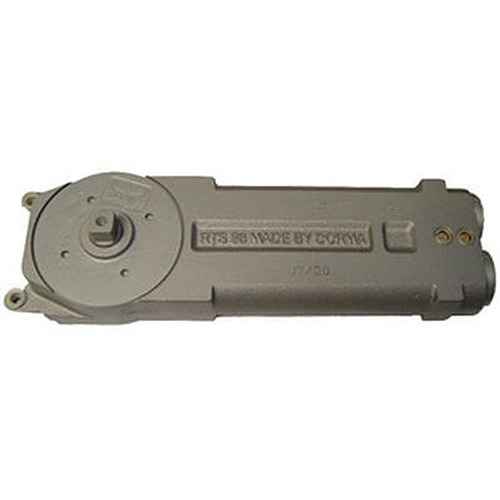

dormakaba RTS88-2-90

Overhead Concealed Door Closer Body with Spring Size 2

Price: $342.00 /each

SKU: RTS88-2-90

Choose Options Below

Dorma RTS88-2 overhead concealed door closer body spring size 2. Designed to fit into headers as small as 1-3/4" x 4" for aluminum frames and is also adaptable to wood and hollow metal frames. For single or double acting interior and exterior doors.

  • Stock Item
  • Order in the next 37 hours 8 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $342.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

No Hold Open 90 Degree (NHO)
Hold Open 90 Degrees (HO90)

Help Me Decide

Hold Open - A door closer with the capability of holding the door in the open position until manually closed. Hold Open door closers are not permitted to be used on fire door assemblies.



Overview

  • Designed to fit into headers as small as 1-3/4" x 4" for aluminum frames and is also adaptable to wood and hollow metal frames.
  • Spring size 2 is available for 90º opening swing or deadstop/hold open only.
  • Maximum door weight of 250 lb.interior or 200 lb exterior.
  • Maximum exterior door width up to a 2-6" and interior door up to a maximum 3' width.
  • For both single-acting or double-acting doors.

Available Options: Choose Options Above

  • Hold Open: info icon

    • No Hold Open 90 Degree (NHO)
    • Hold Open 90 Degrees (HO90)

More Info

  • Closer body is non-handed
  • Mechanical backcheck
  • Always use an auxiliary stop in conjunction with RTS88 installations.
  • Pressure relief valve protects the closer from abuse due to forced closing
  • An integral positive stop limits door swing to 90º .
  • An auxiliary stop should always be installed in conjunction with RTS88.
  • Closing speeds are controlled by two adjustment valves.
    Sweep area is from 105º to 20º. Latch area is from 20º to 0º.
  • Mounting brackets are included to install closer into aluminum or wood headers
