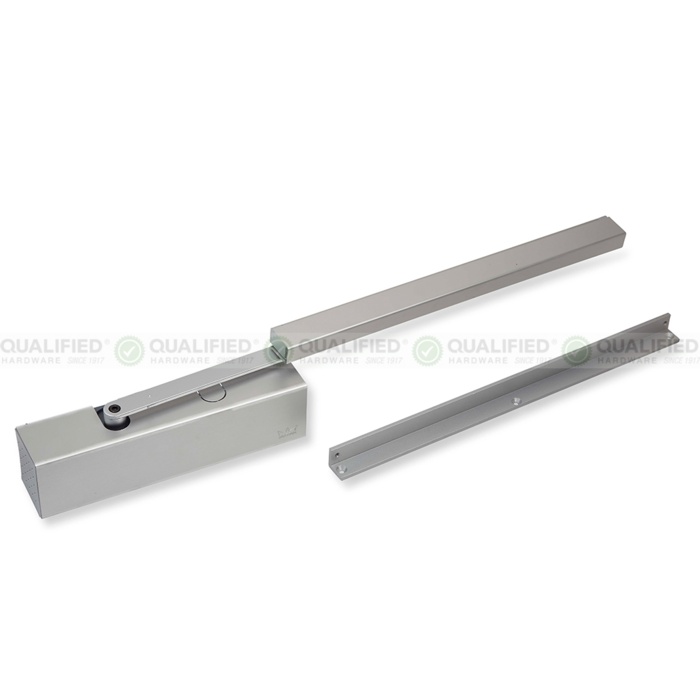

dormakaba TS9315PT-693

Special Order Push Side Closer with Steel Cam and Roller with Track Arm

Quick Product Details

  • Door closer
  • With Steel Cam and Roller Design with Track Arm
  • Push-Side Mount
  • Heavy Duty
  • Matt Black Finish
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: TS9315PT-693

Choose Options Below

This Dorma TS9315PT is a heavy duty push side mount surface closer. It is designed to operate with regular arm efficiency while still providing for track arm aesthetics. This product is non-handed and the spring size can be adjusted from 1-5.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Finish 693-Black Finish

Overview

Special order non stock item with 4 week lead time
Suited for:
  • Interior and exterior doors

Quality and Safety:
  • Meets ANSI A156.4 Grade 1 requirements
  • Meets ANSI A117.1 and ADA requirements for barrier-free accessibility, (Opening force on interior doors: 5 lbs or less, on exterior doors: 8.5 lb or less )
  • U.L. & C.U.L. listed.
  • CSFM and M.E.A. approved
  • Meets UL10C and UBC 7.2 (1997).
  • 25 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Steel cam and roller design with track arm
  • Adjustable backcheck
  • Adjustable delayed action
  • Adjustable sweep-speed and latch-speed
  • Adjustable spring size 1-5
  • includes a full metal cover
  • Furnished with sex nuts for 1-3/4” thick doors
Style Door closer
Mounting Push side
Door Handing Non-handed
Door Width - Interior: 2'6"- 4'
- Exterior: 2'6"- 3'6"
Finish Matt Black Painted -693

More Info


This cam and roller design closer will provide you with exceptional operating efficiency and pleasing track arm aesthetics to improve the quality of your opening. It is equipped with adjustable backcheck, delayed action, sweep speed and latch speed. Its spring size is also adjustable from 1 through 5 for flexibility to apply this closer in many different openings.
