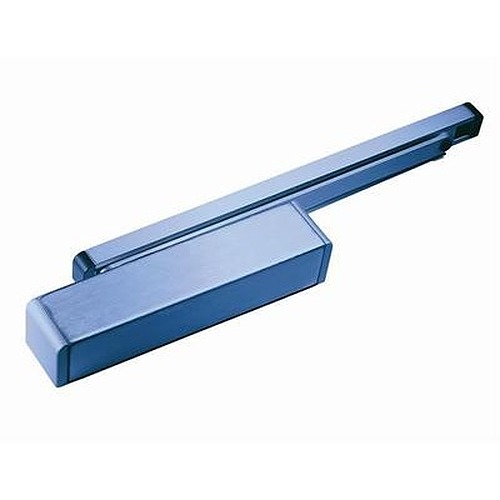

dormakaba TS9315PTH-630

Special Order Push Side Hold Open Closer with Steel Cam and Roller Design with Track Arm

Quick Product Details

  • Door closer
  • With Steel Cam and Roller Design with Track Arm
  • Hold-Open
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: TS9315PTH-630

Choose Options Below

This Dorma TS9315PTH is a push side mount surface closer with the hold-open option which is adjustable for degree of hold-open and hold-open force. Backcheck, delayed action, sweep and latch speeds are easily adjustable.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview

Special order non stock itm with 6 week lead time
Suited for:
  • Interior and exterior doors

Quality and Safety:
  • Meets ANSI A156.4 Grade 1 requirements
  • Meets ANSI A117.1 and ADA requirements for barrier-free accessibility, (Opening force on interior doors: 5 lbs or less, on exterior doors: 8.5 lb or less )
  • U.L. & C.U.L. listed.
  • CSFM and M.E.A. approved
  • Meets UL10C and UBC 7.2 (1997).
  • 25 year limited warranty

Available Options: Choose Options Above

Product at A Glance

Style Track arm door closer
Mounting Push side
Door Handing Non-handed
Door Width - Interior: 2'6"- 4'
- Exterior: 2'6"- 3'6"
Maximum Door Weight 200 lbs.
Finish 630 Satin Stainless Steel

More Info


The hold-open option available on this TS9315PTH door closer allows for the setting of the closer to hold the door open until it is closed manually. It can be adjusted to a suitable degree of hold-open and the proper hold-open force for your opening. This feature can also be deactivated by switching it to off. This closer operates with an efficient track arm.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
