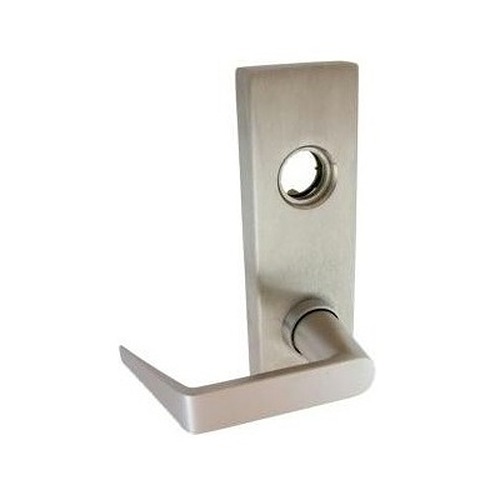

dormakaba Special Order Entry Lever with EscutcheonTrim for 9000 Exit Device Special Orders

dormakaba YR08

Special Order Entry Lever with EscutcheonTrim for 9000 Exit Device

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: YR08

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689

630 +$62.00

Choose Handing:

LHR- Left Hand Reverse

RHR - Right Hand Reverse

Help Me Decide

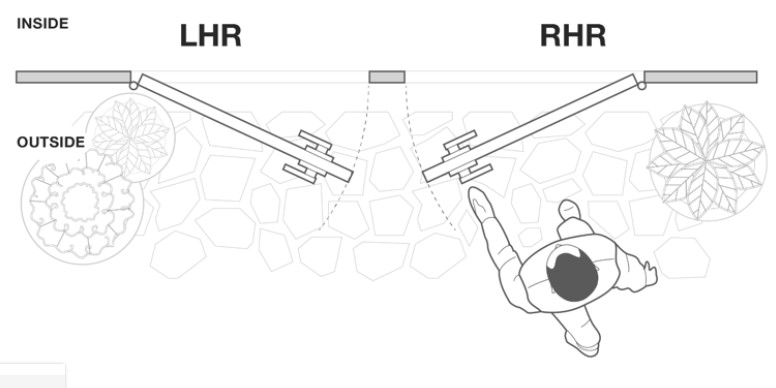

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

1 Choose Finish:
2 Choose Handing:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special order item with 9-11 week lead time.

Classroom function-entrance by lever, key locks/unlocks lever.
With R style lever and Y style escutcheon.
Escutcheon size 8-1/2"H x 2-3/4"W
For 9000 exit devices except 9500M .
Cylinder with Schalge C keyway included.

Available Options: Choose Options Above

Finish:
- 689
- 630
Handing:

Handing

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- LHR- Left Hand Reverse
- RHR - Right Hand Reverse
