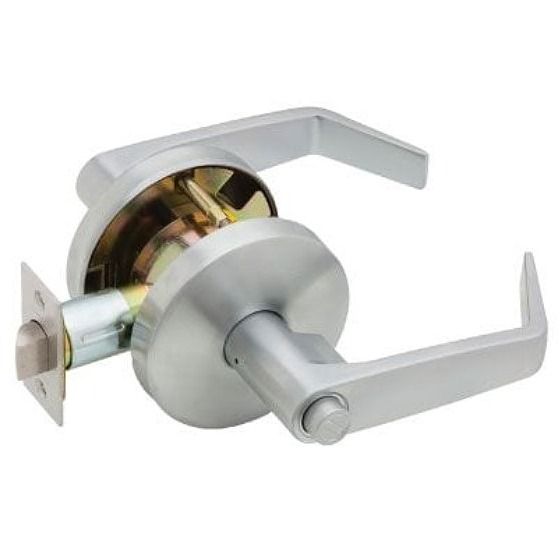

Falcon W301S-Dane

Standard Duty Bath/Bedroom Privacy Lever

Quick Product Details

  • Lever Set
  • Privacy/Bathroom Function
  • Standard Duty
Price: $80.00 /each

SKU: W301S-Dane

Choose Options Below

This Falcon W301S is a privacy/bathroom function lock, suitable for interior applications in standard duty commercial applications. It is a non-handed, reversible lever set which can be adjusted to fit doors that measure anywhere between 1-3/8" thick and 1-7/8" thick.

  • Stock Item
  • Order in the next 17 hours 55 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $80.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Dane (DAN) Dane (DAN)

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose Backset:

2-3/4 2-3/4"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.


Suited for:
  • Standard duty commercial  interior applications with medium to high traffic

Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 2 strength and operational requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty, void if used in Educational Settings

Available Options: Choose Options Above

  • Lever:

    • Dane (DAN)
  • Finish:

  • Backset: info icon

    • 2-3/4"

Product at A Glance

Style Lever set
Backset 2-3/4 Standard
Grade Standard duty
Function Privacy/Bathroom Function:
- Push button on the inside lever locks the outside lever
- Push button is released when the door is closed or the inside lever is turned
- Emergency release on the outside lever
- ANSI F76
Handing Non-handed - easily reversible
Strike - Square corner
- 1-1/8" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-7/8" (patented door range adjuster)



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


How to Install the Schlage AL Lock thumbnail

How to Install the Schlage AL Lock
