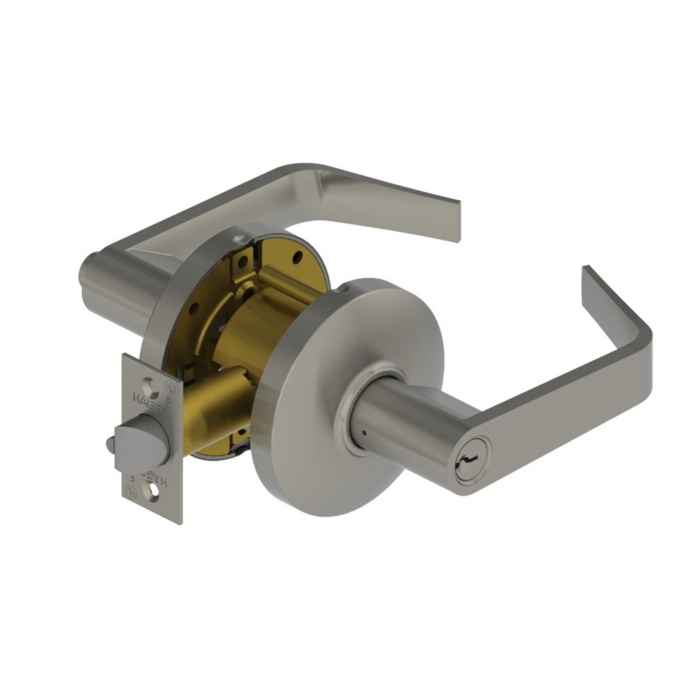

Hager 3580-WTN-626

Storeroom Lever Lock

Quick Product Details

  • Standard Duty Commercial Lever
  • Storeroom Function
  • Keyed Different, Schlage C Keyway
Price: $112.00 /each

SKU: 3580-WTN-626

Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The 3580 is a Storeroom function, keyed different.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 7 hours 5 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

Applications
  • Standard Duty Commercial
Backsets
  • 2-3/4" (70mm)
Cylinders/Cores Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed
Lock Chassis
  • Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Rose Diameter
  • 3-11/32" (85 mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Warranty
  • Lifetime

Notes

Product at A Glance

Style Key-in-lever lock
Grade Standard Duty
Handing Non-handed
Backset 2-3/4" Standard
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
Throw 1/2" (stainless steel)
Door Thickness,Stile 1-3/8" to 2",4-1/2" minimum
Function,Design Storeroom Function:
Outside lever always locked.
Latchbolt operated by key in outside lever,Lever - Whithnell

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
