HES 1500C-630

Complete Electric Strike Kit for Cylindrical and Mortise Locksets

Price: $324.00 /each

SKU: 1500C-630

Choose Options Below

The Complete Electric Strike Kit for Cylindrical and Mortise Locksets Series electric strike accommodates latchbolts in every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.

  • Stock Item
  • Order in the next 30 hours 59 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $324.00

Choose Finish:

630 Satin Stainless Steel 630 Satin Stainless Steel

Overview


Accommodates latchbolts in every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
  • Includes 4 different faceplates.
  • Dual-voltage 12/24 VDC continuous duty.
  • UL 10C fire-rated, 3 hour single door fail secure only.
  • Frame Application, metal
  • Suitable for outdoor use
  • Field selectable fail safe/fail secure.

Available Options: Choose Options Above

More Info

1LB Option

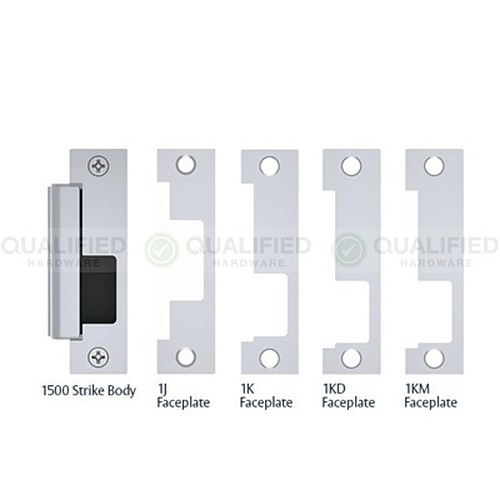

Includes the following faceplates for latchbolts in metal frame applications:
  • 1J  (4-7/8" x 1-1/4") For use with cylindrical locksets  up to 3/4" throw and all locksets with center-lined bolts. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1K  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1KD  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Jackson, Sargent (7700 & 8100), Schlage, Yale (8700). ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1KM  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned below the latchbolt. Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary resistant listed and suitable for outdoor use.
  • ANSI/SDI A250.13 windstorm resistant.
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
