HES 1500C-BSP

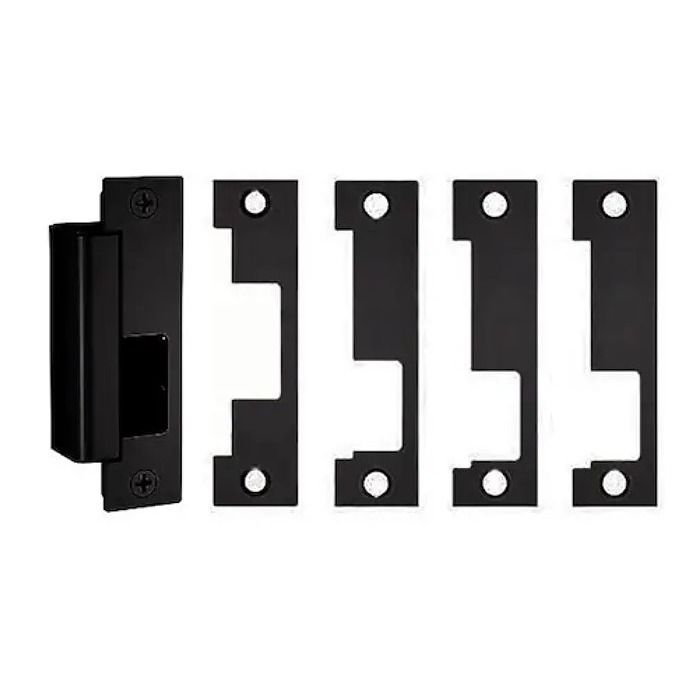

Special Order Complete Electric Strike Kit for Cylindrical and Mortise Locksets

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 1500C-BSP

Choose Options Below

The Complete Electric Strike Kit for Cylindrical and Mortise Locksets Series electric strike accommodates latchbolts in every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

BSP - Black Suede Powdercoat BSP - Black Suede Powdercoat

Overview

Non-Stock Special Order with 3-4 Week lead time

Accommodates latchbolts in every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
  • Includes 4 different faceplates.
  • Dual-voltage 12/24 VDC continuous duty.
  • UL 10C fire-rated, 3 hour single door fail secure only.
  • Frame Application, metal
  • Suitable for outdoor use
  • Field selectable fail safe/fail secure.

Available Options: Choose Options Above

More Info

1LB Option
Includes the following faceplates for latchbolts in metal frame applications:
  • 1J  (4-7/8" x 1-1/4") For use with cylindrical locksets  up to 3/4" throw and all locksets with center-lined bolts. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1K  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1KD  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Jackson, Sargent (7700 & 8100), Schlage, Yale (8700). ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 1KM  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned below the latchbolt. Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary resistant listed and suitable for outdoor use.
  • ANSI/SDI A250.13 windstorm resistant.
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
