HES 4500C

Fire Rated Electric Strike

Quick Product Details

  • Electric Strike
  • Fire Rated
  • Used With: Cylindrical and Mortise locksets without deadbolt with maximum throw of 3/4"
Price: $298.00 /each

SKU: 4500C

Choose Options Below

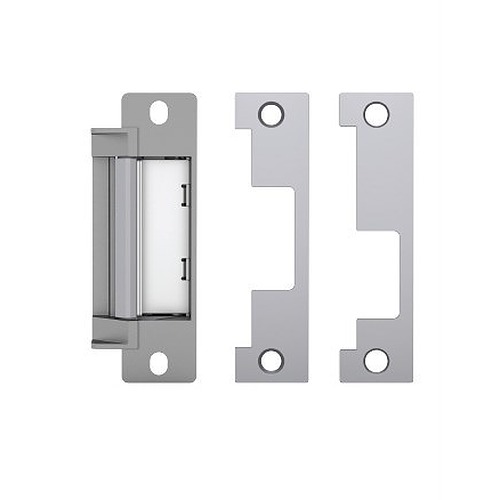

This HES 4500C is a heavy duty, fire-rated electric strike designed for installation in 2" UL 10C fire-rated steel and wood frames and it is for use with cylindrical and mortise locksets with a maximum latchbolt throw of 3/4". Provided with two faceplates to accommodate a variety of different locksets.

  • In Stock!
  • Order in the next 19 hours 59 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $298.00

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview


Quality:
Special Orders Available:
  • More unlisted finishes available
  • Available with LBM/LBSM
Contact us directly to place your special orders.


Available Options: Choose Options Above

Product at A Glance

  • Stainless steel construction
  • Strike is field selectable Fail Secure/Fail Safe. Shipped Fail Secure standard.
  • Includes an internally mounted solenoid
  • Plug-in connector
  • Trim enhancer
  • Allows for horizontal adjustment
  • Includes two faceplates
Style Dual Voltage Electric Strike
Used With Cylindrical and mortise locksets without deadbolt with maximum throw of 3/4"
Application 2" UL 10C fire-rated steel and wood frames with 1/2" drywall penetration
Handing Non-handed
Voltage Dual voltage 12 or 24VDC continuous duty
Electricity - .24 Amps @ 12 VDC/AC, .12 Amps @ 24VDC/AC
- DC - continuus duty
- AC - intermittent duty
Strike Body 1-3/4" deep
Latchbolt Accommodates up to 3/4" latchbolt
Static Strength 3000 lbs.
Dynamic Strength 70 lbs.

More Info


This Hes fire-rated electric strike is versatile and can be used with most cylindrical and mortise locksets. It will accommodate a latchbolt with a throw that measures up to 3/4”. It has a static strength of 3000 pounds and a dynamic strength of 70 pounds. The package includes two different faceplates to fit well with a variety of locksets.
