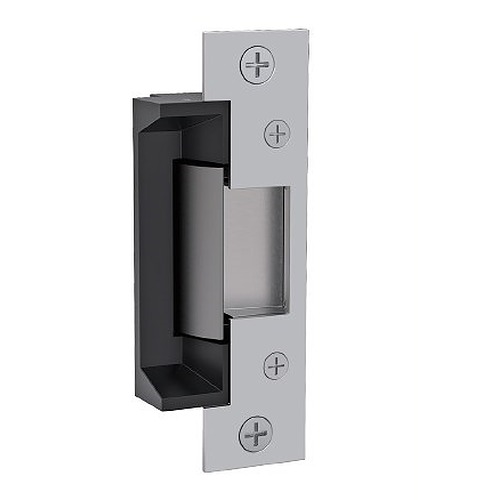

HES 5000

Low Profile Electric Strike for Cylindrical Locksets Suitable For Outdoor Use

Quick Product Details

  • Low Profile Electric Strike
Price: $125.00 /each

SKU: 5000

Choose Options Below

This HES 5000 is an electric strike designed for low profile openings where there is limited space behind the jamb. This strike will accommodate latchbolts with a throw of 1/2" to 5/8" with a 1/8" door gap. UL rated as suitable for outdoor use and 1034 listed as burglary resistant.

  • Stock Item
  • Order in the next 6 hours 33 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $125.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Face Plate:

Need Help Deciding? QH chevron down
501 Option  630 finish + $14.00 501 Option 630 finish +$14.00
501A Option 630 finish + $18.00 501A Option 630 finish +$18.00
502 Option 630 finish + $31.00 502 Option 630 finish +$31.00
503 Option 630 finish + $31.00 503 Option 630 finish +$31.00
504 Option 630 finish + $31.00 504 Option 630 finish +$31.00
No Face Plate

Help Me Decide

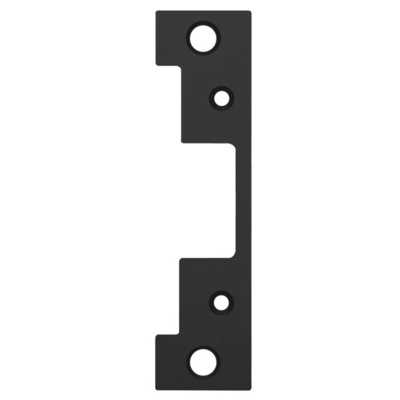

  • 501 Option - For use with cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8” throw
  • 501A Option - For use with cylindrical locksets. Includes universal mounting tabs. For aluminum frames. Radius corners & flat faceplate
  • 502 Option - For use with cylindrical locksets. Includes universal mounting tabs. For aluminum frames.
  • 503 Option - For use with cylindrical locksets. Includes universal mounting tabs. Radius corners & flat faceplate
  • 504 Option - For use with cylindrical locksets. Four point mounting for wood installations. Radius corners & flat faceplate



Overview

Quality:
  • For use with cylindrical locksets, accommodates 5/8" - 3/4" latchbolts.
  • ANSI/BHMA 156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • MEA New York City accepted
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Special Orders Available:
  • Availabl with LBM (monitors position of latchbolt)
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Face Plate: info icon

    • 501 Option 630 finish
    • 501A Option 630 finish
    • 502 Option 630 finish
    • 503 Option 630 finish
    • 504 Option 630 finish
    • No Face Plate

Product at A Glance

  • Compact electric strike is designed for low profile openings where there is limited space behind the jamb
  • Field selectable fail secure/ fail safe
  • Includes an internally mounted solenoid
  • Plug-in connector
  • Tamper resistant
  • Trim enhancer
Style Low Profile Electric Strike
Application Steel, aluminum and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24VDC/AC
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates up to 1/2 - 5/8" latchbolt (with 1/8" door gap)
Strike Body 1-1/16" deep
Static Strength 1,500 lbs.
Dynamic Strength 70ft./lbs.
Finish satin stainless steel (630)

More Info


This product is a low profile electric strike for use in applications where there is a limited amount of space behind the jamb. It can be used in outdoor applications and it is UL listed as burglary resistant. Its dynamic strength is 1,500 pounds and its static strength is 70 feet or pounds. It has a sleek finish of satin stainless steel.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
