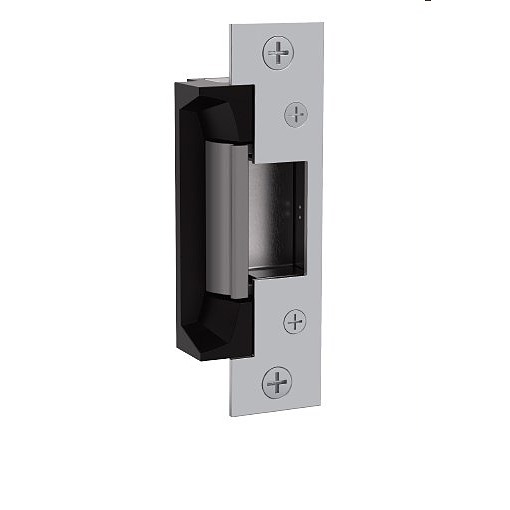

HES 5200

Adjustable Electric Strike Suitable For Outdoor Use

Quick Product Details

  • Adjustable Electric Strike
SKU: 5200

Price: $109.00 /each

Choose Options Below

This HES 5200 is a specially designed electric strike to make installation as easy as possible. The horizontal adjustment feature allows the installer to simply adjust the electric strike opening in order to accommodate the horizontal position of the latchbolt after installation of the strike.

  • In Stock!
  • Order in the next 7 hours 40 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $109.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Face Plate:

Need Help Deciding?
501 Option  630 finish + $11.00 501 Option 630 finish +$11.00
501A Option 630 finish + $14.00 501A Option 630 finish +$14.00
502 Option 630 finish + $26.00 502 Option 630 finish +$26.00
503 Option 630 finish + $26.00 503 Option 630 finish +$26.00
504 Option 630 finish + $26.00 504 Option 630 finish +$26.00
No Face Plate

Help Me Decide

  • 501 Option - For use with cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8” throw
  • 501A Option - For use with cylindrical locksets. Includes universal mounting tabs. For aluminum frames. Radius corners & flat faceplate
  • 502 Option - For use with cylindrical locksets. Includes universal mounting tabs. For aluminum frames.
  • 503 Option - For use with cylindrical locksets. Includes universal mounting tabs. Radius corners & flat faceplate
  • 504 Option - For use with cylindrical locksets. Four point mounting for wood installations. Radius corners & flat faceplate



Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630

Overview

  • For use with cylindrical locksets, accommodates 5/8" - 3/4" latchbolts.
  • ANSI/BHMA 156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Available Options: Choose Options Above

  • Face Plate: info icon

    • 501 Option 630 finish
    • 501A Option 630 finish
    • 502 Option 630 finish
    • 503 Option 630 finish
    • 504 Option 630 finish
    • No Face Plate
  • Finish:

Product at A Glance

  • Field selectable fail secure/ fail safe
  • In-frame horizontal adjustment
  • Includes an internally mounted solenoid
  • Plug-in connector
  • Trim enhancer
  • Tamper resistant
Style Adjustable Electric Strike
Application Steel, aluminum and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24VDC/AC
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates up to 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
Strike Body 1-3/16" deep
Static Strength 1,500 lbs.
Dynamic Strength 70ft./lbs.

More Info


The horizontal adjustment feature on the 5200 series Hes electric strikes greatly simplifies the installation of this device. It will allow for the adjustment of the electric strike opening to accommodate the latchbolt even once the strike has been installed. This strike is rated for 500,00 cycles in endurance and it is listed as burglary resistant.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
