HES 7501

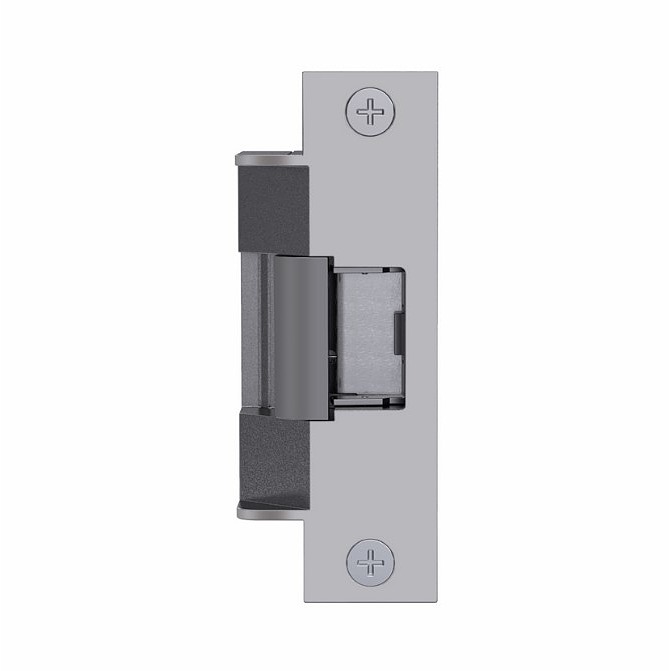

Special Order Electric Strike for Cylindrical Locksets

Quick Product Details

  • Low Profile Electric Strike
Price: $416.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 7501

Choose Options Below

This HES 7501 is an electric strike designed for standard profile openings where there is an average amount of space behind the jamb. This strike will accommodate latchbolts with a throw of 1/2" to 5/8" with a 1/8" door gap. UL rated as suitable for outdoor use and 1034 listed as burglary resistant.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $416.00

Choose Face Plate:

Satin Stainless Steel 630 finish Satin Stainless Steel 630 finish

Overview

Quality:
  • For use with cylindrical locksets, accommodates 5/8" - 3/4" latchbolts.
  • ANSI/BHMA 156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Special Orders Available:
  • Availabl with LBM (monitors position of latchbolt)
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Face Plate:

    • Satin Stainless Steel 630 finish

Product at A Glance

  • Compact electric strike is designed for low profile openings where there is limited space behind the jamb
  • Field selectable fail secure/ fail safe
  • Includes an internally mounted solenoid
  • Plug-in connector
  • Tamper resistant
  • Trim enhancer
  • Fire Rated when configured as Fail Secure
Style Low Profile Electric Strike
Application Steel, aluminum and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24VDC/AC
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates up to 1/2 - 5/8" latchbolt (with 1/8" door gap)
Strike Body 1-1/16" deep
Static Strength 1,500 lbs.
Dynamic Strength 70ft./lbs.
Finish satin stainless steel (630)

More Info


This product is a low profile electric strike for use in applications where there is a limited amount of space behind the jamb. It can be used in outdoor applications and it is UL listed as burglary resistant. Its dynamic strength is 1,500 pounds and its static strength is 70 feet or pounds. It has a sleek finish of satin stainless steel.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
