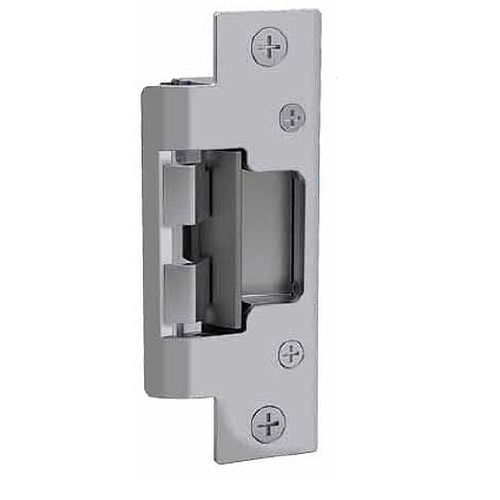

HES 8000C-630

Electric Strike Kit for use with Cylindrical Locksets Suitable For Outdoor Use

Quick Product Details

  • Electric Strike
  • For metal and aluminum jambs
  • Used With: Cylindrical Locksets
  • UL rated - Suitable for Outdoor Use
Price: $175.00 /each

SKU: 8000C-630

This HES 8000C-630 is a compact, quality electric strike for use with cylindrical locksets. The strike is designed to make installation as simple as possible. No cutting of the frame is required. Vertical adjustability accommodates door sag and misalignment.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 36 hours 26 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


  • ANSI/BHMA A156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Product at A Glance

  • Includes the 801 faceplate for metal jambs and 801A faceplate for aluminum jambs
  • Strikes are field selectable Fail Secure/Fail Safe
  • No cutting on frame required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install.
  • Vertical adjustability allowed to accommodate door sag and misalignment
Style Electric Strike
Used With Cylindrical locksets
Application Metal and aluminum jambs
Handing Non-handed
Voltage 12 or 24 VDC/VAC - field selectable
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates 1/2" - 5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
Faceplate Dimensions 4-7/8" x 1-1/4"
Strike Body - 1-1/16" deep
- 1- 7/16" to increase frame compatibility
Static Strength 1,500 lbs.
Dynamic Strength 70 ft./lbs.
Finish Satin stainless steel (630)

More Info

This electric strike is a compact strike for cylindrical locksets. It features a unique concealed design and is simple to install without requiring cutting of the frame. Just remove the existing strike from the frame, adjust the horizontal alignment feature to the centerline of the latchbolt and install. Vertical adjustment is possible for doors with door sag or misalignment.
