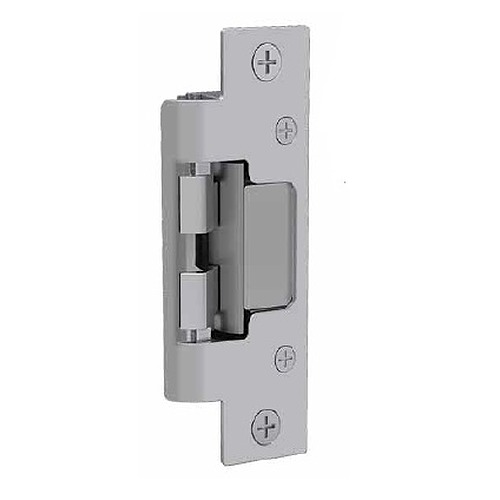

HES 8300C-630

Fire Rated Electric Strike Kit for use with Cylindrical Locksets Suitable For Outdoor Use

Quick Product Details

  • Electric Strike
  • Fire Rated
  • For metal and aluminum jambs
  • Used With: Cylindrical locksets
SKU: 8300C-630

Price: $328.00 /each

This HES 8300C-630 electric strike is UL10C fire rated, CAN4-S104(ULC-S104) fire door conformant and NFPA 80-07 compliant which allows for its retrofitting into a fire rated frame. Package includes two faceplates to accommodate both metal and aluminum jambs.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 37 hours 43 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview



Quality:
  • ANSI/BHMA ​A156.31, Grade 1
  • UL 10C fire rated (Fail Secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • NFPA 80-07 compliant
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Product at A Glance

  • Includes the 801 faceplate for metal jambs and 801A faceplate for aluminum jambs
  • Strikes are field selectable Fail Secure/Fail Safe
  • No cutting on frame required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install
  • Vertical adjustability allowed to accommodate door sag and misalignment
Style Electric Strike
Used With Cylindrical locksets
Application Metal and aluminum frames
Handing Non-handed
Voltage 12 or 24 VDC/VAC - field selectable
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates 1/2" - 5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
Faceplate Dimensions 4-7/8" x 1-1/4"
Strike Body -1-1/16" deep
- 1- 7/16" to increase frame compatibility
Static Strength 1,500 lbs.
Dynamic Strength 70 ft./lbs.
Finish Satin stainless steel (630)

This Hes electric strike is rated by numerous safety, quality and fire safety standards which proves the high standards Hes aims for. A five year limited warranty strengthens our quality guaranty. Feel confident with your Hes purchase since we are the leading manufacturer of electromechanical locking devices.
