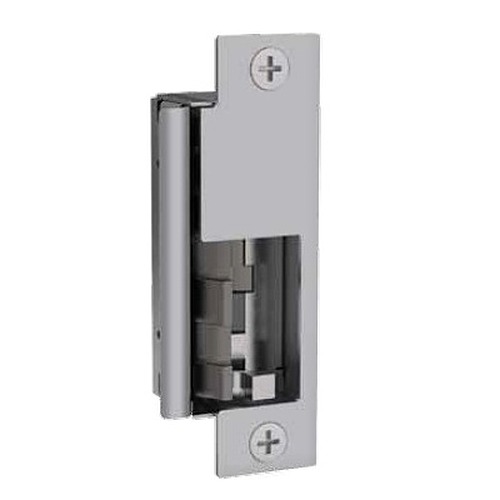

HES 8500

Fire Rated Concealed Electric Strike for Mortise Locks

Quick Product Details

  • Electric Strike
  • Fire Rated
  • For metal and wood frames
  • Used With: Mortise Locks Without Deadbolt
SKU: 8500

Price: $307.00

Choose Options Below

This HES 8500 series is a fire rated electric strike for mortise locks without a deadbolt. It is a very efficient compact strike with a unique concealed design. Conveniently designed for simple installations without necessitating modification to the frame. See more product information below

  • In Stock!
  • Order in the next 15 hours 1 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $307.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Faceplate HES 8500:

Need Help Deciding?

Help Me Decide

  • The 8500 faceplate options kits combine two different faceplate pocket styles with three different deadlatch platform profiles for compatibility with a wide variety of mortise locksets. HES 8500 faceplate option kits are lock specific.
  • There are two faceplates included in each kit: standard faceplate and a faceplate with a wider pocket to address less-than-ideal sagging door conditions.

Compatible locksets: Sargent 8100, 8200, 9200

851M Compatible locksets: Sargent 8100, 8200, 9200



852K Compatible locksets: Corbin Russwin ML 2000

852L Compatible locksets: Schlage L9000



852M  Compatible locksets: Yale 8700 (manufactured before 2005) &
8800, Accurate, Falcon, Kaba Ilco/Unican



Overview


Quality:
  • ANSI/BHMA A156.31, Grade 1
  • UL 10C-fire-rated, 3 hr single-door fire (fail secure only)
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty

Available Options: Choose Options Above

  • Faceplate HES 8500: info icon

    • No Faceplate
    • 851M-Sargent 8100, 8200, 9200
    • 852K-Corbin Russwin ML 2000
    • 852L-Schlage L9000
    • 852M-Yale 8700 (manufactured before 2005) & 8800

Product at A Glance

Style Fire Rated Electric Strike
Used With Mortise Locks Without a Deadbolt
Application Metal and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24 VDC/VAC
Electricity - .24 Amps @ 12 VDC, .12 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates 3/4" mortise latchbolts
Strike Body 1-5/16" deep
Static Strength 1,500 lbs.
Dynamic Strength 70 ft./lbs.

Hes is world renowned for their high quality standards and service and is therefore prefered by businesses and private customers alike. Hes works to exceed customer needs and to provide advancements for you and your business.  By  purchasing a Hes product you are guaranteeing your utmost satisfaction.
