HES 9600-LBM-613

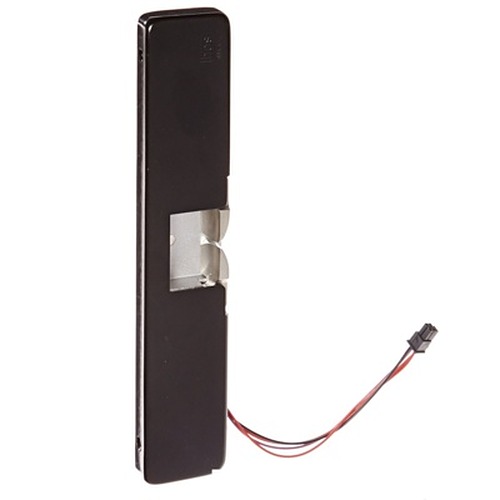

Special Order Genesis Surface Mounted Electric Strike with LBM

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9600-LBM-613

Choose Options Below

Electric strikes provide remote release of a locked door. They allow the door to be opened without retracting the latchbolt. The HES surface mounted 9600 electric strike accommodates rim exit devices in metal or wood jambs with a 3/4" pullman latch. UL rated- suitable for outdoor use. LBM, latch bolt monitor.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Dark Bronze-613 Dark Bronze-613

Overview

  • Surface mounted electric strike accommodates rim exit devices with up to 3/4"pullman latch
  • LBM, latch bolt monitor.
  • UL rated- suitable for outdoor use.
  • Frame application- Steel, Wood
  • Dual voltage 12 or 24 VDC
  • Electrical (continuous duty)- .45 Amps @ 12VDC, .25 Amps @ 24VDC
  • Completely surface mounted
  • Dark bronze finish.
  • Field selectable fail safe/fail secure
  • Non-handed
  • Internally mounted solenoid

Available Options: Choose Options Above

More Info

  • UL1034 burglary-resistant rated.
  • ANSI/BHMA, 156.31 Grade 1.
  • Requires no cuts to the jamb prior to installation.
  • Endurance- 500,000 cycles.
  • Tamper resistant.
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Horizontal adjustment.
