HES 9600

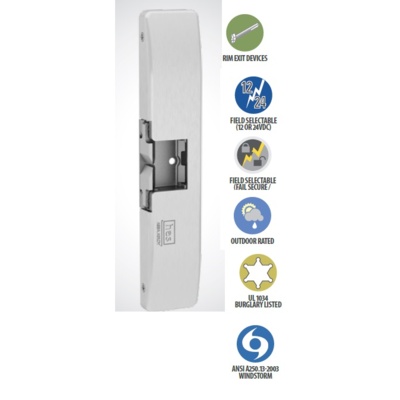

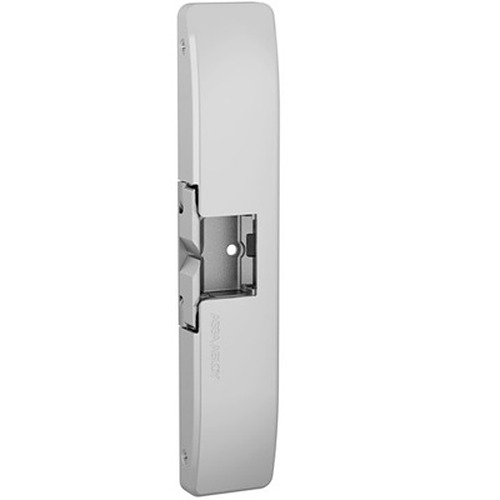

Genesis-Surface Mounted Electric Strike for Rim Exit Devices Suitable For Outdoor Use

Quick Product Details

  • Electric Strike
  • Surface Mounted
  • Used With: Rim Exit Device
SKU: 9600

Price: $289.00 /each

Choose Options Below

This HES 9600 Genesis electric strike is heavy duty and completely surface mounted. It is constructed with extreme strength and durability which enables it to exceed ANSI/BHMA 250.13-2003 severe windstorm testing. This strike will accommodate latchbolts with a throw that measures up to 3/4".

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $289.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose LBM/LBSM:

Need Help Deciding?

Help Me Decide

  • LBM - Monitors position of latch bolt.
  • LBSM - Monitors position of latch bolt and keeper.


  • ANSI/BHMA A156.31, Grade 1
  • ANSI 250.13-2003 Severe Windstorm listed
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 1,000,000 cycles
  • 5 year limited warranty

Special Orders Available:
  • More unlisted  finishes available
Contact us directly to place your special orders.

Available Options: Choose Options Above

  • Finish:

  • LBM/LBSM: info icon

    • LBM - Latch Bolt Monitor
    • LBSM - Monitors position of latchbolt and keeper
    • No LBM or LBSM

Product at A Glance

  • Stainless steel construction
  • Field selectable fail safe/fail secure
  • Horizontal adjustment
  • Internally mounted solenoid
  • Requires no cuts to the jamb prior to installation.
  • Tamper resistant
Style Electric Strike
Used With Rim exit devices
Application Steel and wood frames
Wiring Completely surface mounted
Handing Non-handed
Voltage 12 or 24 VDC/VAC - field selectable
Electricity - .45 Amps @ 12 VDC, .25 Amps @ 24VDC
- DC - continuous duty
- AC - intermittent duty
Latchbolt Accommodates up to 3/4" pullman latch
Static Strength 1,500 lbs.
Dynamic Strength 70 ft./lbs.

Is your application in an area prone to severe weather conditions? Then this is the electric strike for you. It has been proven by ANSI to endure extreme windstorm conditions and it is UL listed as suitable for outdoor use. It is also UL listed as burglary resistant and rated for endurance for 1,000,000 cycles.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Genesis-Surface Mounted Electric Strike for Rim Exit Devices Suitable For Outdoor Use

HES 9400, 9500, 9600 Surface Mounted Electric Strikes thumbnail

HES 9400, 9500, 9600 Surface Mounted Electric Strikes
